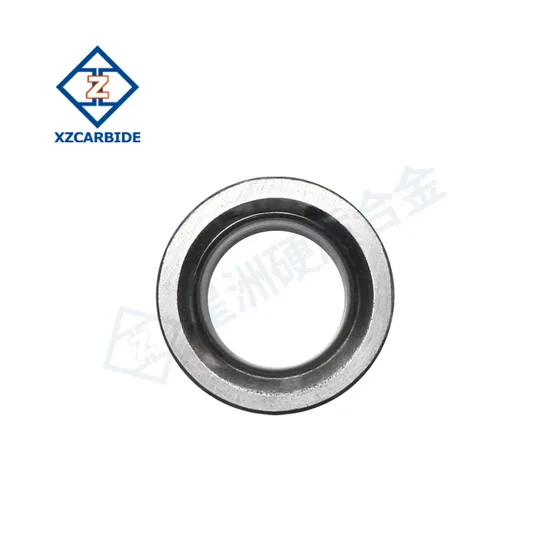

Custom Size Yg6 Yg8 High Quality Tungsten Carbide Wire Wheel Roller for Copper Wire Steel Wire

Product Description

Product Description
The main features of carbide wire wheels include high hardness, high wear resistance, excellent thermal stability and high temperature deformation resistance, good thermal shock resistance and excellent corrosion resistance to chemicals. Specifically:
High hardness?: The hardness of carbide wire wheels is very high, usually between 86~93HRA, equivalent to 69~81HRC. This high hardness enables the wire wheels to maintain high cutting speeds and wear resistance during use.
High wear resistance?: The wear resistance of carbide wire wheels is very good, and they can maintain their performance during long-term use and reduce damage to the wire. Its surface roughness reaches Ra0.025 or more, which further reduces the probability of damage to the wire.
Excellent thermal stability and high temperature deformation resistance?: Carbide wire wheels can still maintain high hardness at high temperatures, usually maintaining a hardness of 60HRC at 900~1000ºC, which makes them perform well in high temperature environments.
Good thermal shock resistance?: Carbide wire pulleys have good thermal shock resistance and can quickly change between high and low temperatures without cracking or deformation.
Excellent corrosion resistance against chemicals?: Carbide wire pulleys also have good corrosion resistance and can maintain their performance in a variety of chemical environments.
These characteristics make carbide wire pulleys perform well in various wire processing, especially in the production of wires, cables, wire ropes, etc., which can significantly improve production efficiency and product quality.

Product Parameters

Grade	Equal to ISO Category Number	Performance			Performance&application recommended
		Density G/Cm 3	Bend Strength N/mm 2	Hardness HRA
YG3	K01	14.9-15.3	≥1180	≥90.5	Sand-blasting nozzles qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles.
YG3X	K01	15.1-15.4	≥1300	≥91.5
YK05		14.95	2500	90.5	Mostly used as the buttons of small and bits medium sized percussion
YG8C		14.8	2400	88.5	and as the inserts of rotary prospecting bits to cut soft and
					medium hard formations.
YG6		14.95	1900	90.5	For coring crowns,electric coal drill bits, coal cutting picks,oil
					cone bits and scraping knife bits,used in coal geological prospecting,
					mining and oil well boring.
YG6X	K10	14.8-15.1	≥1560	≥91.0	Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A	K10	14.7-15.1	≥1580	≥91.0
YG6	K20	14.7-15.1	≥1670	≥89.5	Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8	K30	14.6-14.9	≥1840	≥89	Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
YG10X		14.5	2400	91.5	Fine grain alloy, good wear resistance,Used for processing hard
					wood, veneer board,PCB,PVC and metals.
YG11		14.4	2600	88.5	Forming or stamping dies for metal powders and nonmental powders.
YG11C	K40	14.4	2700	86.5	Largely for the inserts and buttons of percussion bits and tricone bits to cut medium
					hard, hard and very hard formations.
YG15	K40	14	2800	87.5	For fabricating drawing dies of steel tubesand rods under high
					compressibility ratio;punching,stamping,forging tools under large stress.
YG15C		14	3000	85.5	For oil cone dril bits, for medium soft and medium-hard rocks.
YG16C		13.9	2900	85.5	Impact resistance, hot&forging dies etc.
YGH40		13.5-13.9	≥2450	≥83.0	Mainly for making hot dies.
YG20		13.5	3200	85.5	For fabricating of stamping dies for watch parts, spring plates of musical
					instruments, battery jars,small sized steel balls,screws,screw caps.
YG18C		13.7	3100	84.5	Impact resistance forging dies,hot-press forging dies and rollers.
YG20C		13.5	3300	83.5	Dies for wear resistant or impact resistant application.
YG22C		13.3	3500	83	Nut forming dies and high impact resistance forging dies.
YG25C		13.1	3600	82.5	Stainless bolt header dies and rollers.
YT15	P10	11.1-11.6	≥1180	≥91.0	Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel.
YT14	P20	11.2-11.8	≥1270	≥90.5	Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting.
YT5	P30	12.5-13.2	≥1430	≥89.5	Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting.

Company Profile
Zhuzhou Xingzhou Carbide co., Ltd. is a factory with more than 20 years in manufacturing Tungsten Carbide Tools.
We supply various types of cemented carbide cutting tools and spare parts for electric tools, such as tungsten carbide composite rods, tungsten carbide plate and strip, carbide wear parts, carbide rollers, CNC cutters, endmills, circular saw blades, saw tips, custom tungsten carbide products and DTH drill bits and hammer etc.used for mining, road and bridge construction, oil etc.
Our company has in the word advanced production equipment such as pressure sintering furnace, isostatic cool pressing, actomatic pressing machines, subsequent inner stress relieving processing system , complete quality control and check -out equipment and so on.Our products are widely sold all over the world for their high quality and competitive prices. Most ofour products had been exported to America, Europe, Middle East and Southeast Asia markets.We believe that the cooperation with Zhuzhou Xingzhou Carbide Co., Ltd. should be you best choice.

Our Advantages
Superior Material Quality: High quality raw materials for exceptional performance.
Advanced Manufacturing Technology: Superior equipment ensures precise dimensions and high-
quality finishes.
Custom Solutions: Tailored solutions to meet specific customer requirements, including
custom sizes, shapes, and more.
Expertise and Experience: With over 20 years of experience, our team possesses extensive
knowledge and expertise.
Strict Quality Control: We promise that each product meets the highest standards.
Comprehensive Service: We provide services from consultation to after-sales support.
Competitive Price: We offer competitive pricing without compromising on quality.
Fast Delivery: Our streamlined production and logistics processes enable us to deliver
products quickly and efficiently, meeting tight deadlines and urgent requirements.
After Sales Service
Quality Assurance: If any quality issues arise during use, we provide free replacement or repair services.Technical Support: Our professional technical team provides comprehensive support, including product selection, installation guidance, troubleshooting, and maintenance advice.Rapid Response: Our after-sales service team is always on standby to ensure a swift response to customer feedback and take necessary actions to resolve issues, minimizing downtime and losses.needs.

---
