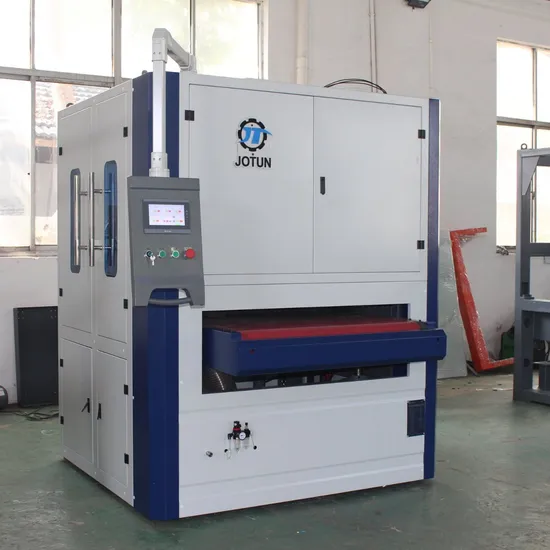

1550mm Wide Belt Sanding Polish Stainless Steel Metal Sheet Metal Deburring Machine

Product Description

Product Description
1.Surface brushing to remove slag function
This equipment is equipped with two sets of wide abrasive belt structure, and the abrasive belt rotates at a high speed driven by the grinding roller to perform wire drawing, polishing and deburring on the surface of the workpiece.
2.Belt automatic deviation correction function
This equipment is equipped with a set of pneumatic deviation correction system, without manual intervention, the abrasive belt can find the swinging action point in a very short time, so that the abrasive belt does not deviate, so that the parts will not deviate during processing.
3.High temperature wear-resistant and anti-damping conveyor belt
The equipment is equipped with a high-damping and wear-resistant conveyor belt. The conveyor structure and conveyor belt are designed for easy maintenance and replacement; the conveyor belt passes through high temperature during use, which can effectively absorb workpieces and increase the service life of the conveyor belt.
Product Parameters

No.	Item	Parameter
1	Worktable height	860-980mm
2	Processing min size	30*30*0.5mm for Magnetic; 50*50*0.5mm for vacuum adsorption
3	Control system	PLC touch screen
4	Processing max width	650mm	850mm	1050mm	1350mm	1550mm
5	Abrasive belt size	1900x650mm	1900x850mm	2200x1050mm	2200x1350mm	2200*1650mm
6	Sanding belt motor	7.5KW X2	7.5KW X2	11KW X2	22KW X2	30KW X2
7	Feed motor	1.5KW	1.5KW	1.5KW	3KW	3KW
8	Worktable lift motor	0.37KW	0.37KW	0.75KW	1.1KW	1.1KW
9	Machine Size	1900x1200x2100mm	1920x1400x2100mm	2100x1700x2100mm	2300x2000x2100mm	2500x2200x2100mm
10	Machine weight	1300kgs	1400kgs	1600kgs	2.2kgs	3.5kgs

Sample display
Company Profile
Jotun established in 2013,located in Hefei city,450km away from Shanghai.
We are devoted to supply metal working machinery,exported to more than 60 countries and 500 customer.
Premium supplier verified by SGS&TUV. Provide European quality with Asia price.
https://www.made-in-china.com/sendInquiry/prod_WxHRvgNoLqkd_boKJUtTHJWYe.html?plant=en&from=shrom&type=cs&style=3&page=p_detail&pv_id=1ifc7j9md8fb&faw_id=1ifc7jc7j924
Certifications
Packaging & Shipping
Related Products
FAQ
Q:Why choose our machine?
A:We are polishing machine equipment MANUFACTURER,
So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A: We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.
Please tell me your requirements first, then we can designed the suitable machine to you.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile
our engineers are available to service overseas. We have partner in part countries too if you want local service.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,
At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs
clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support
and service, and consumables at the lowest price.

---
