Gypsum Board Making Machine Automatically with Best Price

Product Description

Gypsum board making machine automatically with best price

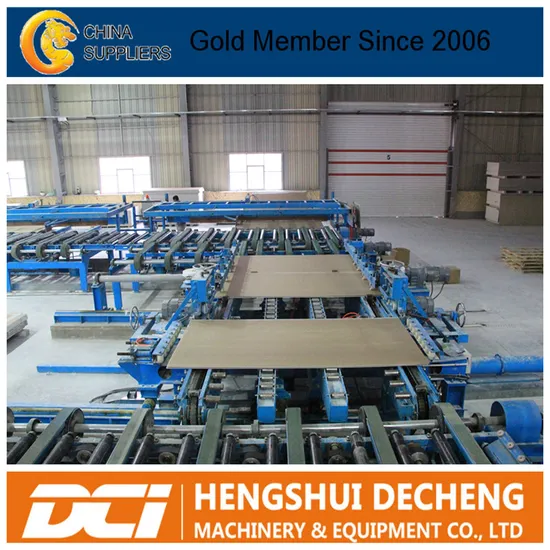

Introduction of gypsum board/panel production line:
1. Production capacity: 2 to 20 million m2/year
2. Raw materials for production:
Gypsum, shielding paper, modified starch, foaming agent, glue and water
3. Fuel: Natural gas, diesel, heavy oil, coal
4. Specification of final product:
Thickness: 8mm-20mm
Width: 1200mm, 1220mm or 1250mm
Length: 1800-4500mm (adjustable)
5. Raw Material Consumption
(Based on 12.5 mm gypsum board for reference)

Item	Consumption
Gypsum powder(semi-hydrated gypsum CaSO4·1/2H2O)	7.5kg/m2
Protective paper	0.4-0.48kg/m2
Gypsum board adhesive	0.052kg/m2
Foaming agent	0.011kg/m2
Glue	0.005kg/m2
Electricity	0.4kwh/m2
Water	5.9-6.2kg/m2
Natural gas (8200 kcal/ m3)	0.31 m3 /m2
Compressed air	0.18m3/m2

(Based on 9.5 mm gypsum board for reference)

Gypsum	6.8kg/m2
Shielding paper	0.48kg/m2
Modified starch	0.035kg/m2
Foaming agent	0.008kg/m2
Glue	0.005kg/m2
Fiberglass (optional)	0.025kg/m2
Electricity	0.3kwh/m2
Water	4.8kg/m2
Heavy oil (11000kcal/kg)	Heat consumption~3800kcal/m2
Natural gas (8500kcal/ m3)	Heat consumption ~3800kcal/m2

6. Sucessful cases:
We have successfully delivered many gypsum board production lines to UAE, Oman, Uzbekistan, Russia, and Iran.
7. Payment conditions:
A. Payment terms: 30% T/T in advance; 70%L/C or T/T
B. We can provide quality guarantee;
C. Kunlun bank account available to make convenient for Iranian clients
About DCI:
Decheng Group is incorporated of three companies: Hebei Decheng International Trade Co., Ltd, Hengshui Decheng Machinery&Equipment Co., Ltd and Qinhuangdao Dadi Engineering Co., Ltd.

Hengshui Decheng Machinery&Equipment Co., Ltd has three workshops: machining workshop and casting workshop and electrical workshop. These three workshops mainly complete the manufacture and fabrication of machines and electrical control for production lines. In 2008, our company passed ISO9001 quality system certification. Our company has our complete professional team specialized in design, manufacturing, supply, installation and commissioning, and we can accomplish the matched electrical control system by ourselves. Moreover, our company owns our share-controlled processing base.

---
