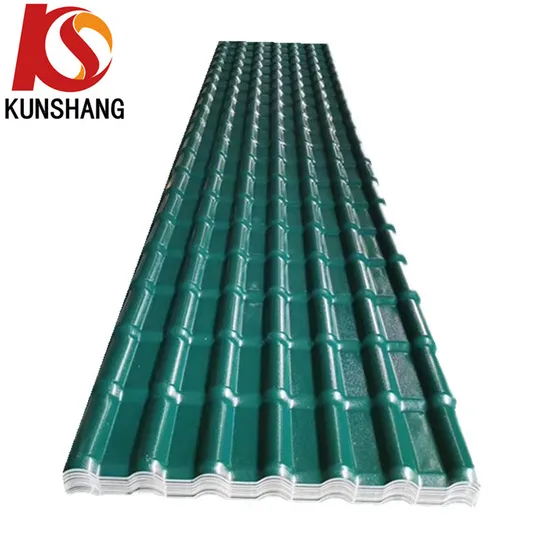

Fireproof Spanish Synthetic Resin PVC Roofing Tiles

Product Description

fireproof spanish synthetic resin pvc roofing tiles advantages:
1.save cost and Environmental protection.
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 3.9-5.9kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity;
10. Environmental protection and energy conservation;
11. Easy to instal Product Description
fireproof spanish synthetic resin pvc roofing tiles description:

Width	1050mm
Weight	3.9-9.6±0.1kg/square meter
Thickness	2.3-5.0mm
Length	customized
Minimum slope	12°
purlin Space	700mm for thickness of 2.0mm 800mm for thickness of 2.5 or 3.0mm
Overlap	one corrugated
popular color	Terra Cotta, Red, Light red, Green, Blue, Grey, Black, Orange etc.customized color is ok.

fireproof spanish synthetic resin pvc roofing tiles data:

Item	Content	Result	Standard
Environment	Pollution or environment friendly	No asbestos and Environment friendly Recycling material	GB6566-2001, A standard good for Environment
Heat distortion temperature	Under 70.0°C	No change	GB/T1634-2004
Vicat softening temperature	Under 75.2°C	No Softening	GB/T1633-2000
Hard to burn	B1 Grade	Oxygen index: 32.4	GB/T2406-1993
Vertical Burning	FV-0	FV-0	GB/T2408-1996
horizontal Burning	FH-1	FH-1	GB/T2408-1996
Impact Resistance	no crack	0/10	GB/T8814-2004
Density	1.75-1.95	1.778	GB/T1033-1986
Corrosion-resistant	Acid (HCL,H2SO4,HNO3)5%	No change	QB/T3801-1999
	Alkaline(NaOH)5%	No change	QB/T3801-1999

Detailed Photos fireproof spanish synthetic resin pvc roofing tiles pictures:
fireproof spanish synthetic resin pvc roofing tiles Producing Line:
fireproof spanish synthetic resin pvc roofing tiles installation:
fireproof spanish synthetic resin pvc roofing tiles application:
fireproof spanish synthetic resin pvc roofing tiles loading and shipping:
Why choose us: Any inquires will be replied within 24 hours . We are professional supplier and exported this kind of products more than 5 years. Any your idea on the packing we can help you to design and put into production. High quality , reasonable and competitive price , fast lead time . All products will have been strictly quality checked in house before packing . All products will be well packed before shipping.Sample order prepared,about 7-10 days for delivery productions. FAQ:
1. What machine do you use to cut?
Using portable cutting machine.
2. What machine do you use to install the screws?
Portable electric drill.
3. How to install ?
Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave.
4. What is the temerature limited of the environment that your roof can be used?
Temperature range: From Minus 35 degree to 72 degree
5. What color can you produce?
White, blue, brick red, green, grey etc, same as our color swatch. If you need special color, please provide sample.
6. Does you charge for the samples?
According to our company policy, we just sent free samples to customers while the customers pay for the freight fees.
7. Can you produce according to customers'design?
Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould fees,after certain quantity, the open mould fees will be returned as product.

---
