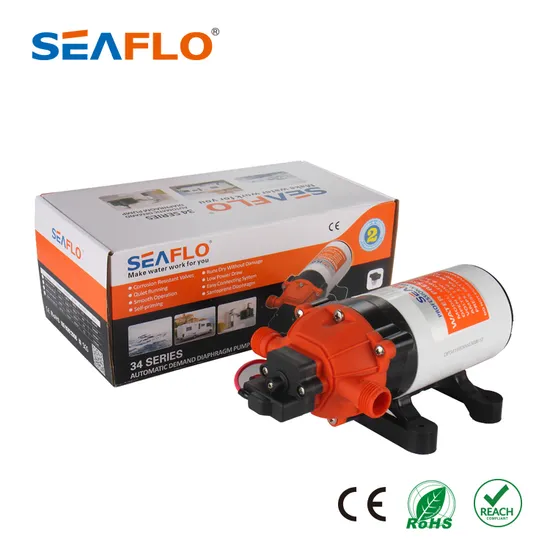

Seaflo 12V 2.2gpm 70psi Agricultural Spray Pump

Product Description

8.3LPM/2.2GPM 70PSI
The 34-Series is our continuous-duty on-demand positive displacement pump. This pump design provides high flow rates in applications with high discharge pressures, making it a great choice for heavy-duty agricultural spraying. This 3-chamber diaphragm pump provides up to 2.2 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the outlet valve is opened and closed. This pump provides maximum performance in a variety of agricultural and industrial applications.

MORE FEATURES
- 2 Year Warranty - Meets or exceeds RoHS, SGS, and ISO standards - Traditional operation by switch or float switch - Entirely submersible	- Run dry capable for normal workloads - Quiet operation - 110°F (43°C) temperature limits - Stainless steel shaf

PUMP Type 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry Control Type Pressure switch Max Recommended Temperature 60° C(140° F) Priming Capabilities 6 feet (1.8 m) suction lift Re-start Pressure Shut-off Pressure 70PSI :56 PSI ±5 PSI (±0.3 bar) Shut-off Pressure 100PSI :75 PSI ±5 PSI (±0.3 bar) Inlet/Outlet Ports 1/2"-14 MNPT Weight 5.1 lbs (2.3 kg) MOTOR Leads 16 AWG, 14" (35cm) long with 2-Pin connector/Leads Duty Cycle Continuous Max.Amp Draw 7.5 A Fuse 11.3 A

STANDARD PUMP CONFIGURATIONS

Model	Voltage	Open Flow (GPM/LPM)	Control Type	Max Draw	Shut-off Pressure (PSI/BAR)	Valves	Diaphragm	Ports	Wire Connections
SFDP1-022-070-34	12V	2.2 / 8.3	Switch	7.5A	70 / 4.8	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP1-022-070-34	24V	2.2 / 8.3	Switch	4.0A	70 / 4.8	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP1-016-100-34	12V	1.6 / 6.0	Switch	6.0A	100 / 6.9	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads
SFDP2-016-100-34	24V	1.6 / 6.0	Switch	4.0A	100 / 6.9	EPDM	Santoprene	1/2"-14 MNPT	2-Pin/Leads

Consult factory for other available models. PERFORMANCE

2.2 GPM PRESSURE FLOW CURRENT PSI BAR GPM LPM AMPS OPEN 0 2.20 8.30 4.20 10 0.68 2.00 7.90 4.40 20 1.36 1.80 6.88 5.10 30 2.04 1.70 6.50 5.70 40 2.72 1.60 6.00 6.30 50 3.40 1.34 5.10 6.80 60 4.08 1.00 4.10 7.50 70 4.83 OFF 0 0

1.6 GPM PRESSURE FLOW CURRENT PSI BAR GPM LPM AMPS OPEN 0 1.61 6.09 3.22 10 0.68 1.52 5.75 3.91 20 1.36 1.45 5.49 4.43 30 2.04 1.38 5.22 5.01 40 2.72 1.29 4.88 5.53 50 3.40 1.2 4.54 5.91 60 4.08 1.14 4.31 6.32 70 4.83 1.03 3.90 6.61 80 5.52 0.92 3.48 6.93 90 6.21 0.81 3.07 7.42 100 6.90 0 0 0

Key Description Quantity A Pump Head Assembly 1 B Valve Assembly 1 C Diaphragm Assembly 1 D Motor Assembly 1

Key Description Quantity 1 Pressure switch 1 2 Diaphragm of Pressure Switch 1 3 Pump Head 1 4 Diaphragm 1 5 Rubber Feet 1 6 Motor 1

SHIPPING INFORMATION

Unit Pump Weight	5.52 lbs (2.32 kg)
Selling Unit Size (L x W x H)	10.98"x 5.63"x 4.41 " (27.9 x 14.3 x 11.2 cm)
Selling Unit Weight	5.61 lbs (2.55 kg)
Master Carton Size (L x W x H)	"23.42 x 11.5" x 9.84" (59.5 x 29.2 x 25 cm)
Master Carton Qty	8 pcs
Master Carton Weight	48.18 lbs (21.85 kg)

FAQ
1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Fuzhou Port.

---
