40ton Hydraulic Moving Head Cutting Press/Cutting Machine /Insole Cutting Machine

Product Description

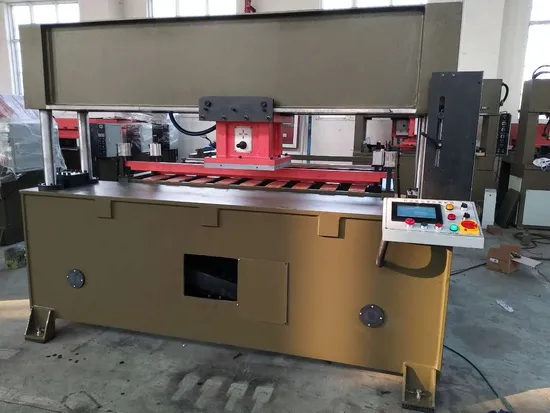

Hydraulic Travelling Head Cutting Machine

The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
1.travel head cutting machine pressure:25Tons-50Tons,Cut material by dies / moulds.
2.Hydraulic,manual simple operated,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Usually cut for shoe uppers,insoles,bags,purse,soft toys,abrasive tools,fabric ect.
5.Can make big cutting area:610*1600mm or as required.
Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.

Model	DP-350KN
Body structure	4 double-precision balancing mechanism link
	Pneumatic clamping automatic feeding station
	Hydraulic type
	Double Cylinder
Maximum blanking force	35 tons
Stroke	35-165mm
Main motor power	3KW
Feeding motor power	1.5KW
Moving head motor power	1.5KW
Cutting area	2000*500mm
Effective cutting width	1500mm
Cutting speed	60mm/s
Fast drop speed	80mm/s
Translational velocity	80mm/s
Moving head size	400X400mm
Unwinding rack	Can loading three layer material of the sand paper
Warranty	12 month
Payment term	L/C at sight

maintenance:
The product warranty for one year warranty period, the buyer must have regular maintenance staff machine,
Machine damage due to improper operation of the outside world and human factors are not covered by warranty.
After a year of free maintenance, but the cost of freight and parts buyer themselves.
Customer repair within 24 hours to give back, for home repairs, the buyer within 48 hours to the installation place.

---
