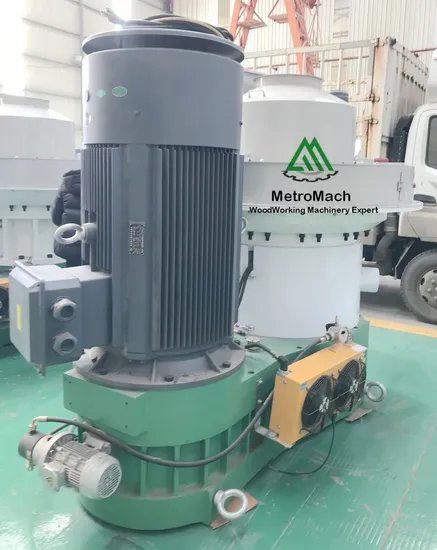

Wood Waste Sawdust Biomass Rotex Centrifugal Vertical Ring Die Pellet Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.

XGJ560

Automatic Grade

Semiautomatic

Controlling Mode

CNC

Energy Saving

Certification

CE, ISO, FDA

Warranty

1 Year

Customized

Condition

New

Color

Multi Color

After-sales Service

1 Year

Transport Package

Standard Export Packing

Specification

Customized

Trademark

METRO MACH

Origin

China, Linyi

Production Capacity

10sets /Month

Product Description

Product Parameters

Model	Power	Capacity	Pellet size
YGKJ560	132+1.5+1.5+0.75+0.37kw	1.5-2 t/h	6/8/10 mm
YGKJ700	160+2.2+1.5+0.75+0.37kw	2-3 t/h	6/8/10 mm
YGKJ880	220+3+2.2+1.5+0.55kw	3-4 t/h	6/8/10 mm

Product Description
The wood pellet machine is a kind of pellet equipment commonly used in the biomass energy industry. It is a new type of fuel molding machine that uses biomass raw materials such as branches, straws, rice hull, bamboo, hemp palm, grass, wood waste and so on, crushed and pressed into rod-shaped particles to replace coal. Wood pellet machine has flat die machine and ring die machine.
The vertical centrifugal high-efficiency ring die granulator produced by our company combines the advantages of traditional horizontal ring die and flat die granulator, and is especially suitable for biomass granulation.
Wood pellet production process :
Production process: crushing section ─ drying section ─ granulation section ─ cooling section ─ packaging section.
Production equipment: The main equipment includes: crusher, pulverizer, drum screen, mixer, dryer, granulator, dust collector, cooler, vibrating screen, packaging machine, etc.
Auxiliary equipment: conveyor, iron remover, raw material silo, finished product silo.

Our Advantages
1.The shell of new pellet dialing system, high strength, anti-wear and corrosion resistance.
2. The position of pellet outlet and the position of the dialing disc's reducer can be selected and adjusted at will. The user can change their position according to the site conditions.
3. The new main shaft adopts high stiffness bearing structure, and its diameter has a 15% increase. The main load bearing's carrying surface has the double increase accordingly. More reliable running, less failure rate, ensure higher output of pellet mill.
4. Adopt the new positioning structure in main shaft frame, make roller disassemble easier, greatly reducing the replacing time of rollers.
5. Gear oil lubrication and air cooling to make oil temperature lower, and pellet machine set with overpressure protection and undervoltage alarm, real-time display of circulating pressure to ensure longterm high-load operation of the pellet machine.
6. The roller adopts new technology, which has wear resisting material on surface welded by Robot. The lifetime of roller is improved and increased all-time.
7. The ring die of 8 th generation pellet mill fully adopts advanced wear-resistant stainless steel, and advanced vacuum furnace quenching technology ensure the hardness same in outside and inside. The die hole is machined by ultra-high speed gun drilling machine.
8. The press lock of die upgraded, and the whole die is fully covered by extended press locks, which increase the strength of die effectively and reduce the corrosion of bearing chamber by steam. The structure of press lock is changed, easier to be disassembled while locking the ring die.
9. The reducer bearings all adopt adjustable structure, which greatly reduce the impact of reducer's lifetime by normal wear due to long-term working.
Detailed Photos
After Sales Service
Packing and Shipping1. Machine body packed in plastic film 2. Spare parts and electrical parts packed in plywood boxes. 3. Fixed in container with steel wires.Our Services1. Design and produce based upon your production need. Provide full sets of drawings and manuals.2. One year warranty for the machine. Liftetime after-sales service and maintenance.3. Professional team for oversea machine installation&debugging.4. Help train and guide machine operating.
FAQ
Q1:How many years experience does your company have in manufacture and exporting? A1:Our company have 30 years manufacturing experience and 13 years exportingexperience
Q2:Where is your factory located in?
A2:We are located in Linyi city,Shandong province,Cina.
Q3:How can we go to visit your factory?
A3:There are fights/long-trip bus/train from Beijing, Shanghai, Guangzhou, Shenzhen city etc to Linyi city.
Q4:Which seaport you export from?
A4:We mainly exportmachines from Qingdao city, sometimes also from Shanghai etc.
Q5:Terms of payment? A5:L/C T/T If you have any questions, you can contact us.
Q6:How to solve the after-sales problem? A6:We can provide online guidance, and the company have professional overseas teams to help solve problem.
