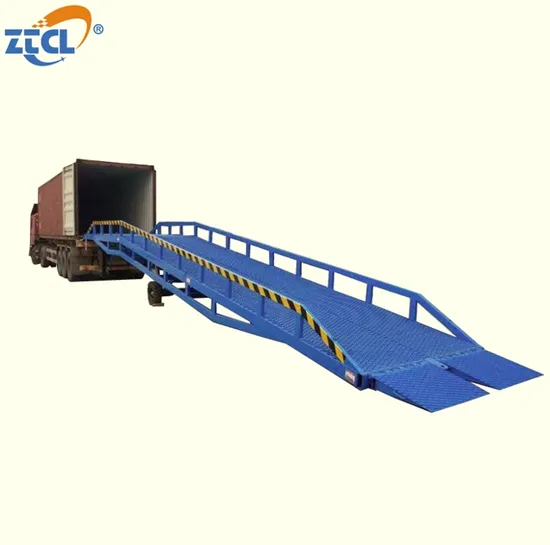

2.2m Width 6ton 8ton 10ton 12tons 15ton Hydraulic Mobile Container Truck Loading Unloading Platform Ramp

Product Description

Product Description
ZTCL Mobile loading ramp is cargo handling and forklift with auxiliary equipment to use, adjustable height according to the level of automobile car, truck directly through the device into the interior of the bulk cargo handling, only a single person operation, you can achieve rapid loading and unloading of goods. It enables companies to reduce a lot of labor, improve efficiency, to obtain greater economic benefits.
Product Parameters

Model	ZTDCQY-6	ZTDCQY-8	ZTDCQY-10	ZTDCQY-12	ZTDCQY-15
Load	6t	8t	10t	12t	15t
Overall size	11300*2100*1100mm	11300*2100*1100mm	11300*2100*1100mm	11300*2100*1100mm	11300*2100*1100mm
Slope length	7150mm(L)	7150mm(L)	7150mm(L)	7150mm(L)	7150mm(L)
Platform plate length	3000mm(L)	3000mm(L)	3000mm(L)	3000mm(L)	3000mm(L)
The tail plate length	750mm	750mm	750mm	750mm	750mm
The tongue plate length	400mm	400mm	400mm	400mm	400mm
Width	2100mm	2100mm	2100mm	2100mm	2100mm
Steel plate thickness	3mm	3mm	4mm	5mm	5mm
Steel mesh thickness	8mm	8mm	8mm	8mm	8mm
Distribution power	Manual hydraulic pump, and hand leg	Manual hydraulic pump, and hand leg	Manual hydraulic pump, and hand leg	Manual hydraulic pump, and hand leg+ 2 auxiliary legs	Manual hydraulic pump, 2 hand legs+ 2 auxiliary legs
Adjustable range	1100-1800mm	1100-1800mm	1100-1800mm	1100-1800mm	1100-1800mm
Guardrail high	200mm	200mm	200mm	200mm	200mm
Main beam	160*80*4mm rectangular pipe 4 main beams	160*80*4mm rectangular pipe 4 main beams	160*80*4mm rectangular pipe 4 main beams	200*100*5mm rectangular pipe2 pcs 200*100*4mm rectangular pipe3 pcs, Total 5 main beams	200*100*6mm rectangular pipe,4pcs 200*100*6mm rectangular pipe,1pcs Total 5 main beams
Vice beam	100*50*4mm	100*50*4mm	100*50*4mm	100*50*4mm	120*60*5mm
Hydraulic cylinder	Φ80*Φ45(2 pcs)	Φ80*Φ45(2 pcs)	Φ80*Φ45(2 pcs)	Φ80*Φ45(2 pcs)	Φ80*Φ45(2 pcs)
Hydraulic oil pipe	32Pma	32Pma	32Pma	32Pma	32Pma
Solid tire	600-9	600-9	600-9	700-9	700-9
Container connectivity	The bridge body is welded with a hook and fixed with a steel chain
Paint Color	Blue,Red,Grey,Black
Self- weight	±2200kg	±2400kg	±2600kg	±3300kg	±4000kg

Detailed Photos
Anti slip diamond mesh Hand hydraulic pump Oil cylinder
Support legs Strong bottom frame Antislip baffle and tyre
Product show
Our Advantages
1.Heavy-duty mobile tyreMobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.2.Adjustable height supporting legsPrevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles3.Manual hydraulic elevator systemIt's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.4.Fold-down transition boardThe tail and transition plate and forklift folding hook can be convenient mobile cllimbing.5.Adjustable length Hinge Chains hook vehicles, make cllimbing and vehicles even shift always close together.6.Bridge body structureBridge body strength, high bearing capacity bridge by high strength manganese steel body : compound high strength, thecharacteristics of large carrying capacity.
7.Antiskid steel netsAdopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb. Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.
8.Safety crack-proof valve
Packaging & Shipping
Certifications
Company Profile
FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.

---
