| Negotiable | 1 Set (MOQ) |

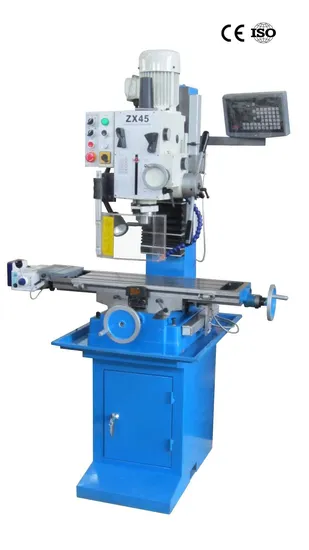

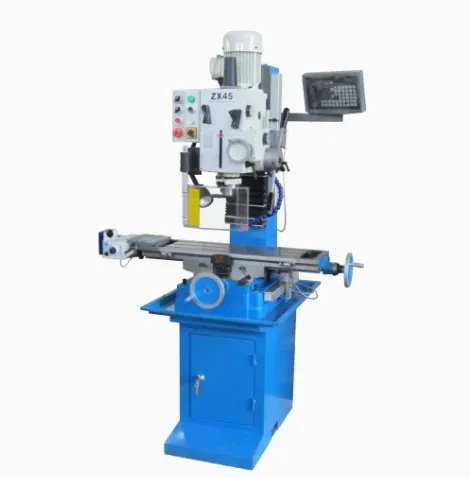

| Milling Drilling Machine ZX45 Feature |
| ·Milling drilling, tapping, boring, reaming |
| ·Gear driving and strong cutting power |
| ·Headstock can rotated 360°and can tilted ±45° |
| ·Heavy-duty tapered roller bearing spindle |
| ·Positive spindle lock |
| ·Adjustable gibs on table |
| ·Micro feed precision |
| Specifications | ZX45 | |
| Max. drilling capacity (iron/steel) | Ø45/32mm(MT4) | |
| Face mill capacity | Ø80mm | |
| End mill capacity | Ø32mm | |
| Working table size | 800x240mm | |
| Working table travel | 560x190mm | |
| T-Slot size | 14mm | |
| Spindle stroke | 120mm | |
| Max. distance spindle to table | 460mm | |
| Distance between spindle and column | 260mm | |
| Head tilt left and right | 90° | |
| Spindle taper | MT3 or MT4 or R8 | |
| Spindle speed range | 1 Speed motor 1.1KW (standard): | 75-1600rpm |
| 2 Speed motor 0.85KW/1.1KW (optional): | 75-3200rpm | |
| Number of speeds | 6 or 12steps (optional) | |
| Auto spindle feeds (optional) | 0.1/0.18/0.26mm/r | |
| Cooling motor (optional) | 40W | |
| N.W/G.W | 330/380kg | |
| Packing dimension (w/o stand) | 850x760x1150mm | |
| 20' container | 36sets | |
| Standard Accessories | Optional Accessories |
| Draw bar | S-Machine stand |
| Adapter | C-Cooling system |
| Taper shank for drilling chuck | L-Halogen light |
| Drilling chuck | W-Work table power feeder |
| Arbor | B-CE electrical control box(tapping) |
| T slot bolt | F-Auto spindle feeder |
| Washer | D-2-step motor |
| Nut | R-Digital read out (DRO) |
| Tilted wedge | |
| Spanner | |
| Oil gun |
