Aluminum Window Machine Center Drilling and Milling Profiles Making Machine

Product Description

Product Description
Basic Info.

Model	MC4-6500
Air pressure	0.6-0.8MPA
Air consumption	100L/min
Power supply	380V/50Hz
Electrospindle power	9Kw
Total power	17.5Kw
Rated rotation rate	12000rpm
Max.rotation rate	24000rpm
A-axis pivoting range A	90° to -90°
X-axis stroke X	6500mm
X-axis feed rate X	0-55m/min
Y-axis stroke Y	800mm
Y-axis feed rate Y	0-40m/min
Z-axis stroke Z	660mm
Z-axis feed rate Z	0-20m/min
Magazine capacity	8
Tool holder	ISO30/HSK-63F
End milling disc diameter	≤150mm
Positioning accuracy	+-0.1mm
Surface roughness	Ra6.3um
Dimension	10300*2350*2550mm
Weight	4500kg

Accessories

Electrospindle	OLISPEED (ITALY)
PLC	SYNTEC(TAIWAN)
Solenoid valve	AIRTAC (TAIWAN)
Frequency converter	DELTA(TAIWAN)/ MODROL (CHINA)
Proximity switch	OMRON(JAPAN)
Servo motor	SYNTEC(TAIWAN)
Servo driver	SYNTEC(TAIWAN)
Guide rail	HIWIN (TAIWAN)
Ball screw	HIWIN(TAIWAN)
Rack and ponion	YYC(TAIWAN)
Electric parts	SCHNEIDER(FRANCE)

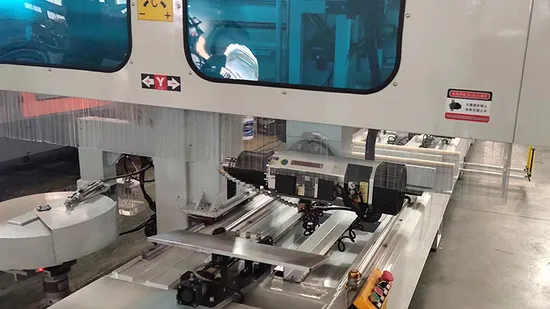

Detailed Photos
TEXT
Standard features :
4-axis cnc machining.. Standardly equipped with air cooled electric spindle motor.. Used for machining the aluminum and thin-walled steel profile.. Operations include drilling,routing,tapping and end milling.,,. Continuously adjustable machining angles from 90° to -90°.90° to -90°. Automatic tool changing,standardly equipped with 8 tools.,8. Worktable is standardly equipped with 8 clamps.8. The clamps are automatically positioned and automatically adjusted during the machining process to step aside the machining area.,. Two separate processing areas allow double profiles alternate processing. Operating environment: WINDOWS.:WINDOWS. Syntec CAM software.CAM
product lines
Our Advantages
HISENA specializing in production and selling UPVC and aluminum doors and windows manufacturing equipment was established in 2008. Our company is located in Jinan, China. We have professional team of 50 staff in R&D, production, marketing and after-sales service. Mr. Linwei Zheng, our general manager, has been adhering to the rigorous craftsmanship spirit for more than 10 years, always considering customer needs and customer experience, and constantly innovating to meet market requirements. Routine
Packaging & Shipping
1.Payment Terms: 40% T/T in advance, 60% T/T balance before delivery.
2.Delivery Time:15 working days after payment.
3. Packed with plywood cases or as request and acutal need.
Company Profile

After-ales Service

Answer support requests inside a two-hour time frame
Most issues are resolved within 24 hours.
When needed, a technician is usually sent the next day
Most parts are kept in our inventory to reduce idle time
Warranty Policy
Service life of our equipment is more than 10 years. All products are with 1 year warranty.
Installation and Training
Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
Accessories
Necessary replacement spare parts for all equipment are dispatched with the equipment. In our warehouse, almost all accessories are in stock, usually we will send related accessories out the next working day upon request from customers.

---
