Pet Feedstuff Processing Dual Screw Mixer/Double Ribbon Blender

Product Description

Pet Feedstuff Processing Dual Screw Mixer/Double Ribbon Blender
Parameter for reference:

Model no.	Effective Volume(L)	Loading coefficient	Power(KW)	Rotate speed(R/min)	Dimension(mm)	Weight(kg)
TDL-200	200	0.6-0.8	4	53	2020X630X1360	360
TDL-300	300	0.6-0.8	5.5	53	2300X700X1490	530
TDL-500	500	0.6-0.8	7.5	45	2600X840X1680	780
TDL-1000	1000	0.6-0.8	11	45	2930X990X1790	1160
TDL-1500	1500	0.6-0.8	15	39	3280X1070X1950	1830
TDL-2000	2000	0.6-0.8	18.5	39	3520X1280X2080	2150
TDL-3000	3000	0.6-0.8	30.0	31	3820X1560X2330	3360
Pls feel free to contact us if you need more technical parameters!

FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:

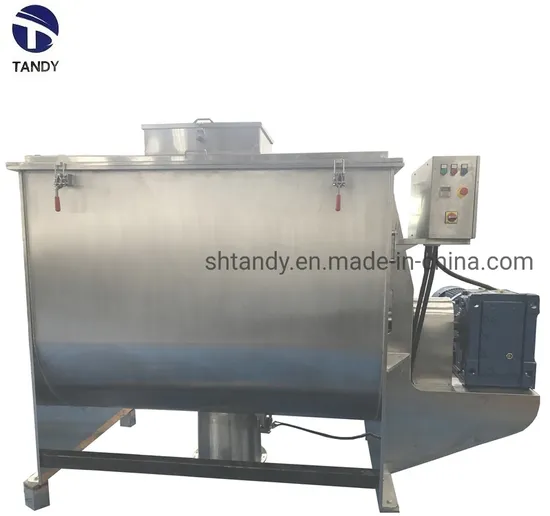

The Horizontal Ribbon Mixer is consisted of U-Shape tank, spiral and drive parts. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing. TDL series Ribbon Mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid a paste material into powder and granular material. The cover of the tank can be made as open in order to clean and change parts easily.
Main Features :
1. This mixer is wide application for mixing material, for the paste mixing even; keep granule mixing intact.
2. Material proportion different1:1000~5000 perfectly mixing.
3. The discon-nexion ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.
4. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat.
More pictures to show:
Our factory:
Our exhibition:
Our service

---
