1000W-6000W Laser Welding Machine for Metal Plate Welding Factory Price

Product Description

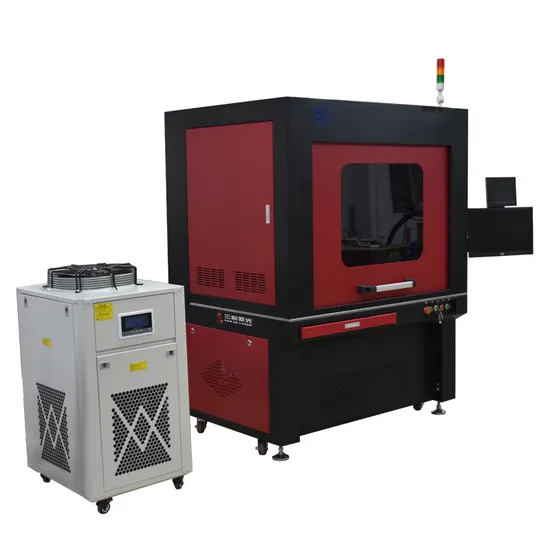

Continuous fiber laser welding machine
Product advantages The laser beam is in good quality, fast welding, firm and beautiful welding seam, give user efficient and satisfied welding plan. Industrial PC controlled, the work-piece can do plane trajectory movement, user could weld points, straight lines, circles, squares and arch composed of arbitrary planar graphics. High conversion rate, low energy consumption, save processing costs in long term. High reliability, 24 hours continuous processing, meet the needs of industrial mass production. Customize for clients special demand. Performance advantages High welding speed, high precision, more refined appearance. The size of solder joints can be adjusted according to the requirements, and small heat affected zone, which won't cause deformation of precision products. Density welding won't appear porosity and trachoma, can be ground and polished. Technical -parameters

Model	3HE-MF750	3HE-MF150/1500	3HE-MF450/1500	3HE-MF300/3000	3HE-MF/4500
Optical parameters
Work model	Continuous modulation
Average power	120	250	500	500	750
Average pulse	75	150	450	300	450
Max power	750	1500	1500	3000	4500
Max pulse energy	7.5	15	0.9	30	45
Wavelength	1080nm
Repeat rate	0-5000Hz		500-5000Hz	0-5000Hz
Pulse width	0.05-50ms		0.05-0.6ms	0.05-50ms
Output power stability	<2%
Red light	configured
Output parameters
Output connector	QBH (customizable)
Fiber core diameter	25, 50, 100 optional			50, 100, 200 optional
BBP(mm.mrad)	0.4, 2, 5			2, 5, 10
Electronic control characteristics
Input voltage(VAC@47-63Hz)	200-400, single-phase			340-420, three-phase-five-wire
Control model	External RS232/External AD
Power adjustment	10-100
Power consumption	300	600	2000	1200	1800
Other characters
Size (mm)	450*240*680(with handle)			650*890*100(with ring)	650*1000*1450(with ring)
Weight (KG)	<30	<50		<150	<200
Cooling	Water cooling
Operating temperature(ºC)		10-40

We can provide jigs
Package:
Our Service
1) Free Pre-Sales Consulting / Free Sample Marking
2) Strict Quality Control of Production
3) 5-7 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
8) Special Designing, Customized, OEM Order is accepted
Company information
Dongguan Sanhe laser technology Limited Company is a professional manufacture of laser equipment and the modernization of production and application of high-tech enterprises,In this ten years ,out sanding Sanhe team has been committed to the study and practice of light conversion , take lifting laser value as our business goals ,take promoting Chinese national laser industry to the world as our professional mission,we believe that if you want to success ,you must be professional ,and professional skills and pragmatic approach to service each customer .
Certification:ISO. CE . SGS .
Vision:when three lines must has somebody be my teacher, we respected team members idea.
