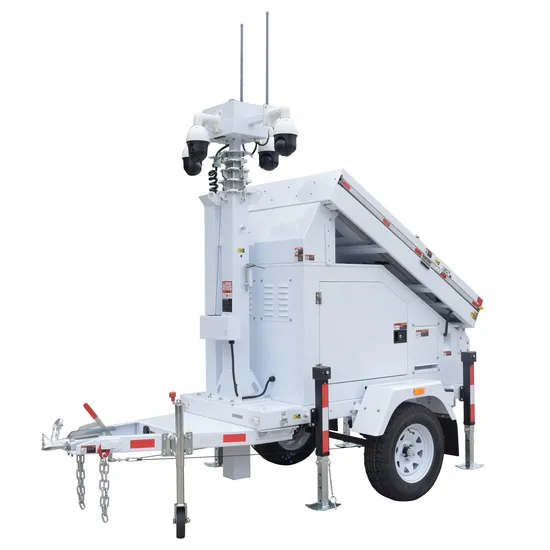

Mobile Solar Surveillance CCTV Trailer Tower

Product Description

Product Description
Solar Lighting Tower

Model	UST-300 Block	UST-300	UST-600	UST-900	UST-1200	UST-1800	UST-2400
Solar Panel	1 × 460W	1 × 460W	2 × 460W	3 × 460W	4 × 460W	6 × 460W	8 × 460W
Panel Lifting	0°~90° Manual Lifting	10°~45° Manual Lifting	10°~45° Manual Lifting	30°~38° Electric Lifting	30°~38° Electric Lifting	0°~25° Hydraulic Lifting	0°~25° Hydraulic Lifting
GEL/LFP Battery	1 × 200Ah DC12.8V	2 × 200Ah DC12V	4 × 200Ah DC12V	6 × 200Ah DC12V	8 × 200Ah DC12V	12 × 200Ah DC12V,Auto-Fan	16 × 200Ah DC12V,Auto-Fan
Battery Capacity	2560Wh 80% Deep	4800Wh 80% Deep	9600Wh 80% Deep	14400Wh 80% Deep	19200Wh 80% Deep	28800Wh 80% Deep	38400Wh 80% Deep
System Voltage	DC12V	DC12V	DC24V	DC24V	DC48V	DC48V	DC48V
LED	2 × 100W 30000LmsAuto	2 × 100W 30000Lms ,Auto	4 ×100W 60000Lms Auto	4 × 150W, 90000Lms Auto	4 × 200W 120000Lms Auto	4 × 300W 180000LmsAuto	4 × 400W 240000LmsAuto
Rotation	No	Optional	Optional	350° Electric	350° Electric	350° Electric	350° Electric
Tilt	No	90° Electric	90° Electric	90° Electric	90° Electric	90° Electric	90° Electric
Controller	40A MPPT	40A MPPT	40A MPPT	60A MPPT	40A MPPT	60A MPPT	80A MPPT
Mast	5M 4 Sections	7M 5 Sections	7M 5 Sections	9M 5 Sections	9M 5 Sections	9M 9 Sections	9M 9 Sections
Mast Lifting	Manual Winch	Manual Winch	Manual Winch	Electric Winch	Electric Winch	Hydraulic	Hydraulic
Trailer Standard	No	US / AU / EU	US / AU / EU	US / AU / EU	US / AU / EU	US / AU / EU	US / AU / EU
Hitch	No	2'' Ball / 3'' Ring	2'' Ball / 3'' Ring	2'' Ball / 3'' Ring	2'' Ball / 3'' Ring	2'' Ball / 3'' Ring	2'' Ball / 3'' Ring
Brake	No	No	Electric	Mechanical	Mechanical	Electric	Electric
Axle	No	Single	Single	Single	Single	Double	Double
Tire	No	14 inch	14 inch	15 inch	15 inch	15 inch	15 inch
Outriggers	No	4 ×	4 ×	4 ×	4 ×	4 ×	4 ×
Forklift Holes	4 ×	2 ×	2 ×	2 ×	2 ×	2 ×	2 ×
Wokring Temp	0ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Charging Time	4.4 hours	8.8 hours	8.8 hours	8.8 hours	8.8 hours	8.8 hours	8.8 hours
Running Time	9.6 hours	19.2 hours	19.2 hours	19.2 hours	19.2 hours	19.2 hours	19.2 hours
Dimension(mm)	1000*1000*2900	2500*2150*2700	3700*2150*2750	3550*1650*2800	3650*2250*2800	4150*2250*2800	4150*2250*2800
Weight	450kg	750kg	950kg	1400kg	1600kg	2000kg	2400kg
QTY in 20' / 40'	10 units / 20 units	8 units / 16 units	8 units / 16 units	3 units / 7 units	2 units / 4 units	2 units / 4 units	2 units / 4 units

Company Profile
We ZHEJIANG UNIVERSAL MACHINERY CO., LTD. specialized in production and sales of Solar lighting tower, diesel generator, super-silent generator, reefer container generator, mobile lighting tower and construction related equipment. covers most world-famous brands like Cummins, Deutz, Perkins, ISUZU, Volvo, FAW, LD etc. "Strict management, brave innovation, customer satisfaction and strive for the brand." is our manufacturing principle. Through the improvement of the production process, we have accumulated rich experience in design, manufacture and debuggingensuring reliable and steady performance of our products. Our factory area occupied 30,000 square meters, with annual production 5,000 units. Generator power ranges from 10kva to 2250kva, Solar lighting tower with illumination power capacity from 100W to 400W. According to the functions, we offer common type (standard), automation type, trailer type, Van type, low noise type, and other types series. We can design and manufacture the special specification and models in accordance with the customers' requirement. We would be a reliable partner in this field. Welcome overseas clients come and communicate with us!

---
