US$5,000.00-8,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Mill Drilling Machine
Controlling Mode
Artificial
Certification
CE, ISO 9001
Max.Vertical Milling Dia.
32mm
Distance Spindle to Table
100-580mm
Distance Spindle to Column
400mm
up/Down Motor of Headstock
550W
Overall Dimension
1800X1900X2300mm
Transport Package
Wooden Case, No Need Fumigation, Plastic Cover
Specification
CE, ISO9001
Production Capacity
300 Sets/Month
Product Description
Product Description
Multi-Function Horizontal Drilling and Milling Machine (ZX5150)
With rectangular table
With automatic spindle feed
With hardened table surface
CE, ISO9001
Main feature:

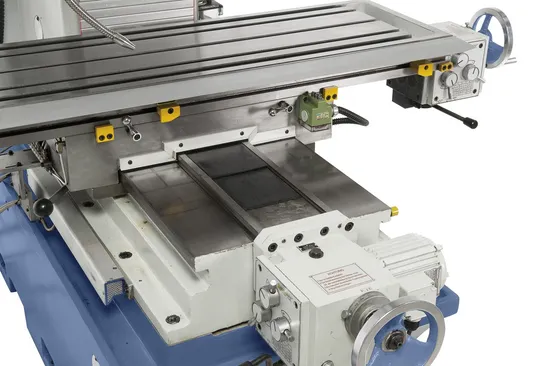

1. Rectangular table guide ways with high stability
2. Automatic spindle feed
3. Motorized lifting and lowering of head-stock
4. Headstock swivels ± 45°
5. Hardened and ground table surface
Multi-Function Horizontal Drilling and Milling Machine
SPECIFICATION | UNIT | XZ5150A | XZ5150 |
| Max.vertical milling dia. | mm | 32 | 32 |
| Max end mill width | mm | 125 | 125 |
| Max. drilling dia. | mm | 50 | 50 |
| Spindle taper | | 7:24 ISO40 | 7:24 ISO40 |
| Spindle travel | mm | 180 | 180 |
| Spindle speed range | r/min | 94-2256(16 steps) | 94-2256(16 steps) |
| Automatic Feed Series sleeve | mm/r | 0.1/0.15/0.3(3 steps) | 0.1/0.15/0.3(3 steps) |
| Distance spindle to table | mm | 100-580 | 100-600 |
| Distance spindle to column | mm | 400 | 400 |
| Swivel angle of headstock | | 45° | 45° |
| Up/down speeds of headstock | mm/min | 2000 | 2000 |
| Table size | mm | 1250×360 | 1220×360 |
| Table travel | mm | 600×360 | 600×360 |
| Table feeds range | mm/min | 22-555(8 steps)810(max.) | 18-555(8 steps)810(max.) |
| T-slot of table (no./width/distance) | mm | 3/18/80 | 3/14/95 |
| Main motor | kw | 1.5/2.4 | 1.5/2.4 |
| Motor of table power feed | w | 750 | 370 |
| Up/down motor of headstock | w | 550 | 550 |
| Coolant pump motor | w | 40 | 40 |
| N.W./G.W. | kg | 1900/2150 | 1760/2000 |
| Overall dimension | mm | 1800×1900×2300 | 1730×1730×2300 |
>>
