High Precision Universal Automatic Feeding Knee Type Milling Machine X6036A

Product Description

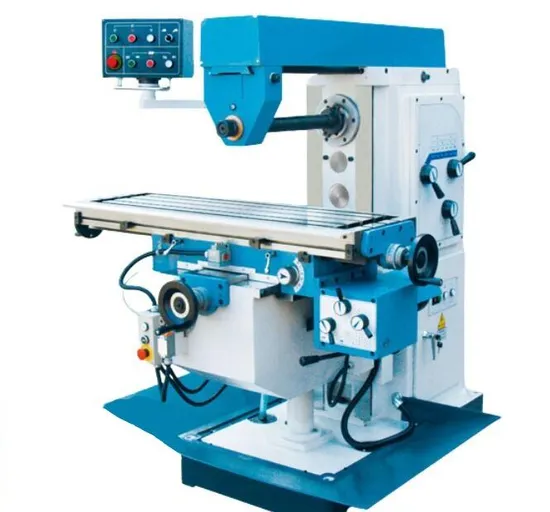

Knee Type Milling Maching X6036A

Milling machine is a horizontal milling machine,power feed on two axes , motorized lift on Z axis, three axes hardened,steel-type strong, good stability.
Specification:

Model No.	X6036A
Item No.
Specifications
Table size	1250x360 mm
Table travel	Horizontal	660 mm
	Cross	320 mm
	Vertical	400 mm
Rang of longitudinal cross travel	30-740mm/min 8steps 1080 mm/min (rapid)
Z-speed of table	590 mm/min
T-slot of table(number width length)	3-18-80
Spindle
Spindle taper	7:24 ISO50
Distance form spindle nose to table	0-440 mm
Distance form spindle axis to arm	170 mm
Spindle speed range	60-1700 12steps rpm
Dimension of package
Main Motor power	4 kw
Motor for rapid device of table(X. Y)	750 w
Motor for vertical device of table(Z)	750 w
Overall dimension	1880x1700x1700 mm
N. W/G. W	1850/1950 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
