Hamburger Paper Food Paper Sillcone Oil Coated Paper Reel to Sheets Cutting Machine High Speed Multi-Roll Loading as Optional

Product Description

Hamburger Paper Food Paper Silicone Oil Coated Paper Reel to Sheets Cutting Machine High-Speed Multi-roll loading as optional
End product picture

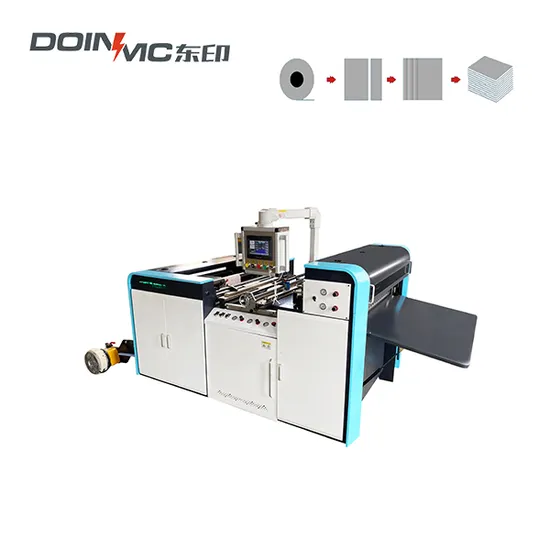

Machine Introduction
The automatic sheeting machine is suitable for all kinds of paper, self-adhesive, gold and silver cardboard, color printing compound, PVC, and other materials. It is RS-K economy type. It is mainly customized for hamburger paper and sandwich wrapping paper less than 60g. The servo motor is used for feeding, which increases the cutting precision more than step motor control. PLC touch screen control. The paper is directly stacked after cutting. One worker collects the sheets by manual. Optional: hydraulic shaftless automatic loading stand. The utility model has the advantages of simple operation and convenient maintenance. You can choose 1 / 2 / 3 / 4 roll feeding and 1-4 format slitting.

Model	RS-K 600	RS-K 800	RS-K 1100
Max. unwind width	600mm	800mm	1100mm
Max. unwind dia.	1200mm	1200mm	1200mm
Paper thickness	28-300gsm	28-300gsm	28-300gsm
Max. cut speed	150cuts/min	150cuts/min	150cuts/min
Max. meter speed	120m/min	120m/min	120m/min
Cutting length	50-600mm	50-600mm	50-600mm
Cutting precision	≤±0.2mm	≤±0.2mm	≤±0.2mm
Max. pile height	420mm	420mm	420mm
Slit format	1-4 sheets	1-4 sheets	1-4 sheets
Unwind reel No.	1-4 reels	1-4 reels	1-4 reels
Voltage request	380V/50Hz	380V/50Hz	380V/50Hz
Machine power	6-14kw
Machine weight	2500-6000kgs
Machine size	4600-6200*1270*1800mm	4600-6200*1470*1800mm	4600-6200*1770*1800mm

Company Introduction
Wenzhou Dongyin Machinery Manufacturing Co., Ltd. Established in 2019, we are growing out from Ruian City Dongfang Machinery Manufacture Co., Ltd.(since 1993) We take the good technical tradition from it and develop stronger soft packing material roll sheeting machine series. Absorbing more new advanced technology, we have a brand upgrade of our old products both in pre-press and post-press industry.
We will keep our core value to offer great service to each customer's home and aboard. Offer qualify machine, make client getting rich. Good service, good faith. We DONGYIN people always stand by.
Shipping
Customized model, please contact our sales by inquiry here directly.
We will reply by email or phone call as soon as possible.

---
