| US$16,000.00 | 1 SET (MOQ) |
Composite material processing Carbon fiber, boron fiber, laminated glass,aramid fiber, glass fiber, metal composites, reinforced plastics and etc.. |
Widely used in aircraft, missiles, satellites and space shuttle, such as the airplane cabin door, fairing, airborne radar cover, the plane bracket, empennage. |

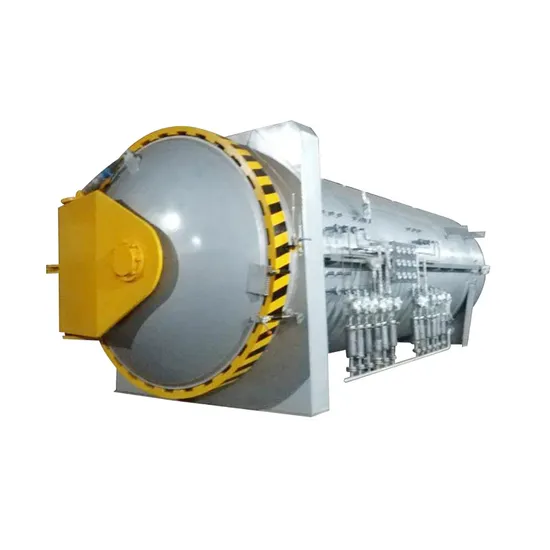

1 | Autoclave body | Completely according to GB713-2008 "steel pressure vessel" standarddesign and manufacturing, pressure weld radiographic testing, 100% for equipment provides a powerful guarantee the quality and safety performance. All values are made of SUS304. The autoclave certified to ASME and CE code. |
2 | The head | Tooth shape and ellipsoidal head adopts integral forging flange plate, thickness is greater than the kettle body thickness. |
3 | The door | Adopt cylinder one way to open the door, have a unique design of walking track, can automatically set and lock. The automation of the device was improved |
4 | Heating element | the medium wave infrared radiation heating pipe, heating element is uniformly distributed in the kettle on both sides and bottom, to ensurethe kettle in the process of heating in the uniformity of temperature before and after, at the same time to shorten the heating time, achieved the purpose of energy saving. |
5 | Thermal insulation material | using high density resin rock wool to internal insulation, theinsulationperformance is superior to the traditional rock wool; The kettle insideheat loss not easily, especially in heat preservation phase, can be a very good temperature constant, guarantee the machining quality andyield of the product. Other insulation outer part with stainless steel plate and seal, in addition to increasing aesthetic, also played the anti-rust and antifouling functions. |
6 | Heat circulation system | inside the kettle on both sides of the layout and the kettle body blowing air inlet connection pipe, uniform processing amount blow holes on the pipeline. In the process of pneumatic compression, as a result of air pressure, blowing holes blow out air, drive the kettle inside air flow, the formation of thermal cycle within the kettle. |
7 | Control system | configuration of PLC system, use the color touch screen, the entire process to achieve automatic operation; In the process of work, the pressure and temperature curve display at any time, and the presence of paper recording function, can complete process curve and process parameters of record; In the process of heat booster, with pressure, such as temperature, pressure and temperature control procedures, to ensure the process curve of temperature and pressure by setting a simultaneous, in the process of constant temperature constant pressure and is equipped with automatic temperature and pressure control. |
8 | The safety interlock system | on the kettle body is equipped with mechanical safety interlocks, program also set chain security program; Realize the kettle with pressure can't open the door; Super WenChao pressure automatic alarm and overtemperature automatic cooling, overpressure automatic pressure relief, maximum limit to ensure the safety of the operation. |
COMPOSITE AUTOCLAVE_TECHNICAL PARAMETER | |||
No. | Description | Unit | Specifications and Parameters |
1 | Effective Working Diameter | mm | customized |
2 | Effective Working Length | mm | customized |
3 | Design Pressure | Mpa | 1.2 |
4 | Max. Working Pressure | Mpa | 1.0 |
5 | Max. Pressurization Rate (average) | bar/min | 0.6 |
6 | Max. Depressurization Rate (average) | bar/min | 0.6 |
7 | Safety valve exhaust | Mpa | 1.15 |
8 | Design Temperature | º C | customized |
9 | Max. Working Temperature | º C | customized |
10 | Max. Heating Rate(Air average) | º C/min | 4.5 |
11 | Max. Cooling Rate (Air average) | º C/min | 4.5 |
12 | Temperature uniformity at steady state | º C | ± 2.5 |
13 | External shell temperature at max. temperature | º C | < 60 |
