Unlocked Zyxel Nr5103EV2 5g Nr Indoor Router 4.7gbps WiFi6 4G LTE Cat19 SIM Card 5g WiFi CPE

Product Description

Zyxel NR5103EV2 is a 5G NR indoor router that supports sub-6 GHz NR 2CC with 200 MHz channel bandwidth. It features WiFi 6 AX1800 2x2 + 2x2 standard for superior performance and coverage. The NR5103EV2 also has 2xRJ45, 1xUSB 2.0, and 2 TS9 ports for external antenna connection.
Zyxel NR5103EV2 supports 5G NR DL speeds of 4.67 Gbps* and 4G LTE DL speeds of up to 1.6 Gbps*, increasing internet speed and reducing network latency. Wide-spectrum bandwidth accelerates internet speed and reduces network latency for premium and time-sensitive mobile broadband services.
Compliant with Wi-Fi 6 (802.11ax) standard, the NR5103EV2 offers speeds of up to 1,774 Mbps with 2x2 UL/DL MU-MIMO. With the uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), and beamforming technologies empower the NR5103EV2 to deliver premium speed for multistreaming data access and optimal Wi-Fi experience without dead zones.
Deploying NR5103EV2 as part of FWA allows you to extend your 4G/5G service coverage into subscribers' homes and workplaces without extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with a premium fixed-grade connection.
Through the 4G/5G radio interface, the NR5103EV2 supports TR-369, TR-069, and remote GUI to be fully configurable. Firmware Over-The-Air (FOTA) support enables remote firmware upgrades and troubleshooting through events triggered by the operators.
Zyxel NR5103EV2 5G NR Indoor Router Specifications:
5G NR Interface
------------------------------------------------
* 3GPP Release 15 standard-compliant
* Supports both NSA and SA modes
* FDD: n1/n3/n5/n7/n8/n20/n28/n77/ n78
* TDD: n38/n40/n41
* Supports DL 4×4 MIMO: n1/n3/n7/n38/ n40/ n41/ n77/n78
* Data rates:
5G SA: DL 4.7 Gbps; UL 2.5 Gbps*
5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*
* Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Output power:
Class 2 (26 dBm) for 5G NR n41/ n77/n78
Class 3 (23 dBm) for rest FDD/ TDD NR bands

4G LTE interface
---------------------------------------------
3GPP UE Category 19 standard- compliant
Supports frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/ B32
LTE-TDD: B38/B40/B41/B42/B43
Supports DL 4×4 MIMO: B1/B3/B7/ B38/B40/B41/B42/B43
Peak data rates:
Max. DL 1.6 Gbps/UL 211 Mbps*
Supports DL modulation QPSK, 16-QAM, 64-QAM,and 256-QAM
Supports UL modulation QPSK, 16-QAM, 64-QAMand 256-QAM
Output power:
Class 3 (23 dBm) for rest FDD/TDD LTE bands
WiFi air Interface
---------------------------------------------
Wirelessstandard: IEEE 802.11b/g/n/a/ ac/ax
Wireless speeds:
Link rates up to 1,774 Mbps* for 802.11ax DBDC
Internal WiFi antenna:
Dual-band & concurrent 2×2 +2×2
WiFi antenna gain:
~3 dBi for 2.4 GHz
~4dBi for 5 GHz

5G/4G antennas
---------------------------------------------
Two TS9 connectors for external antennas
Four embedded omni-directional antennas
Antenna Spec (Peak Gain)
700 MHz ~ 960 MHz: 2 dBi
1.4 GHz ~ 2.7 GHz: 5 dBi
3.3 GHz ~ 4.2 GHz: 5 dBi

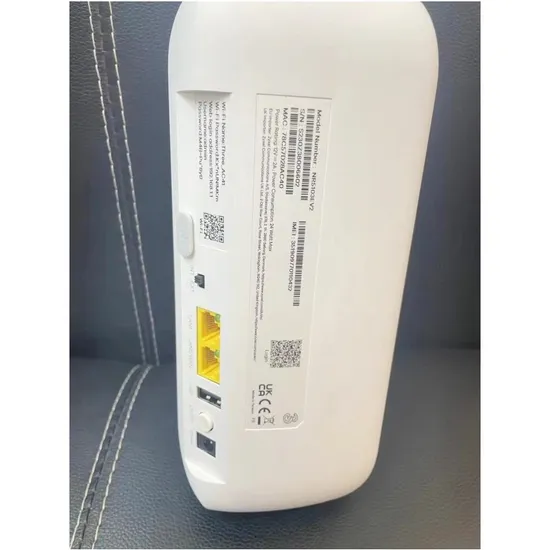

Hardware Interface
---------------------------------------------
Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port
LED indicators:
Power indication
Signal strength
Internet connection status
WiFi AP status
WPS status
Two external antenna connectors (TS9 type)
One 3FF/Micro SIM card slot
One power on/off button
One WPS/WiFi on/off button
One reset button
One Int/Ext antenna switch
One USB 2.0 host port for file sharing
Our Services

1)Your inquiry will be replied within 12 hours.
2)Well-traind&experienced sales can reply your inquiries in English.
3)During working time,E-mail will be replied to you within 2 hours.
4)OEM&ODM projects are highly welcomed ,we have strong R&D team.
5)The order will be produced exactly according to order details and proofed samples,our QC will submit inspection report before shipment.
6)Good after-sale service
