Basic Info.
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Semi Hanging
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Transport Package
Iron Net Box Package
Production Capacity
10000set/Year
Product Description

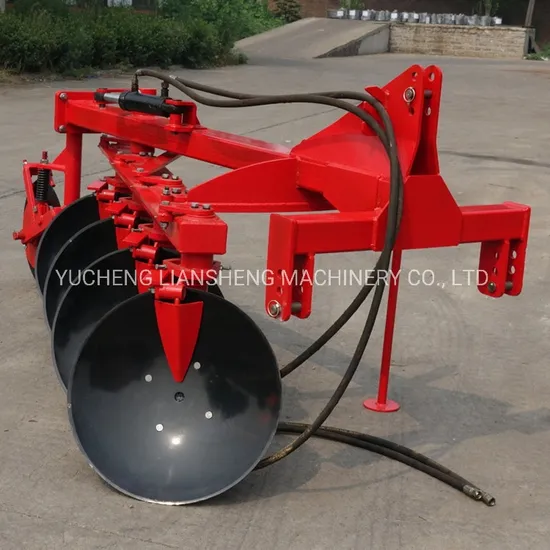

2020 year High quality Reversible disc plough Hydraulic turning disk plow
The disc plow controls the steering through the hydraulic cylinder to achieve the same direction of turning and prevent idling at the ground.
It is suitable for the ploughing operation of the mature land or wasteland in the dryland area, especially suitable for the returning operation of ploughing high-yield green fertilizer field and rice-soil.
The eccentric angle of the tail wheel piece is adjustable, and the reversing direction is synchronous with the plough piece, which effectively ensures the smooth cultivation of the whole machine.
| Model | Unit | 1LYDP-325 | 1LYDP-425 | 1LYDP-525 | 1LYDP-625 |
| Working width | mm | 750 | 1000 | 1250 | 1500 |
| Working depth | mm | 150-300 | 150-300 | 150-300 | 150-300 |
| No.of discs | | 3 | 4 | 5 | 6 |
| Diameter of disc | mm | 660/710*6 | 660/710*6 | 660/710*6 | 660/710*6 |
| Matched power | hp | 50-80 | 80-100 | 100-120 | 120-150 |
| Overall weight | kg | 620 | 700 | 830 | 950 |
RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below:
Contact: Allen Gao
Phone/ : 86-18053402558
Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China
>>
