Mini Ring Spinning System Lab Yarn Twisting Machine

Product Description

Product Description

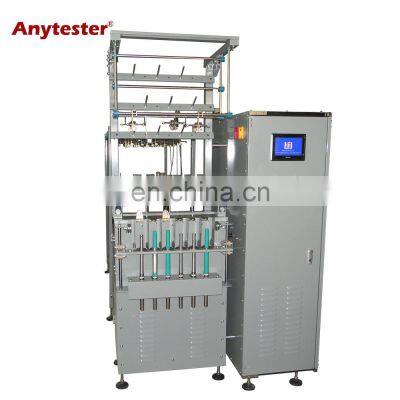

Product DescriptionAT208 Laboratory Twisting Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. andit is used to twist plied yarn into folded yarns through ring spinning and twisting.Features★ It adopts touch screen and PLC control.★ Imported frequency converter of high efficiency.★ Mini type machine, save researching cost and easy to operate and maintain.★ Can be used for cotton fiber or wool fiber (alternative) with different partsSpecificationModelAT208Spindle number12Spindle length205mmSpindle speed5000~20000 RPMSpindle gauge42mmRoller diameter25mmRing diameter38/42/45mmOutput capacity0.25 ~ 1kg/hMax. output speed42m/minTwist range1200 ~ 2000 twist/mPower220V/380V, 50/60Hz, 850WDimension1200*800*1600mmPacking & DeliveryPackagingSize(mm)1300 (L) * 900 (W) * 1800(D)Weight400KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product

---
