1. The maximum theoretical volume is up to 125/75 m3/h. 2.The newly designed pumping unit has a flatter pumping mechanism.3.The low-pressure loss platform straight pipe is adopted, and the pipe laying is smoother when getting off the car.4.Reduced pumping resistance and improved adaptability to poor materials.5.The area of the mixing blade is increased to reduce the accumulation of materials in the hopper.

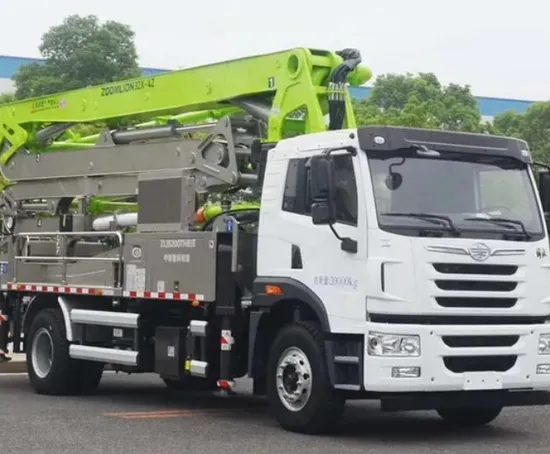

Model
| ZLJ5230THBTE 37X-5RZ
|
Pumping system
| Maximum theoretical delivery (m3/h)
| 100/60
|
Concrete maximum outlet pressure (MPa)
| 8/15
|
Fixed work stress (MPa)
| 35
|
Hopper volume (L)
| 550
|
Feeding height (mm)
| 1540
|
Distribution valve form
| S valve
|
Boom
| structure type
| 37X-5RZ
|
Maximum fabric height (m)
| 36.5
|
Maximum cloth radius (m)
| 32.15
|
Swing angle
| ±270°
|
Number of arms
| 5
|
Arm length (mm)
| 7280/5920/5670/6880/6750
|
Arm angle
| 90°/180°/180°/240°/195°
|
Duct diameter (mm)
| 125
|
Leg span (front × back × portrait) (mm)
| 6190mm×7740mm×6780mm
|
Chassis and vehicle
| Chassis model
| Sinotruk Brand ZZ5231N521GE1
|
Wheelbase (mm)
| 5200
|
engine model
| Man Engine: MC07.31-50
|
Engine maximum power (kW/(r/min))
| 228/2300
|
Engine maximum torque N.m/(r/min)
| 1230 /(1200~1800)
|
engine capacity cc
| 6870
|
Fuel tank volume L
| 300
|
Exhaust emission standard
| Euro V
|
Vehicle quality (kg)
| 23000
|
Overall dimensions (length × width × height) mm
| 9840×2530×3905
|
