Haichen New Energy Saving Xd-300h Honeycle Cylinder Dehumidification Dryer for Plastic Injection Molding Machine

Product Description

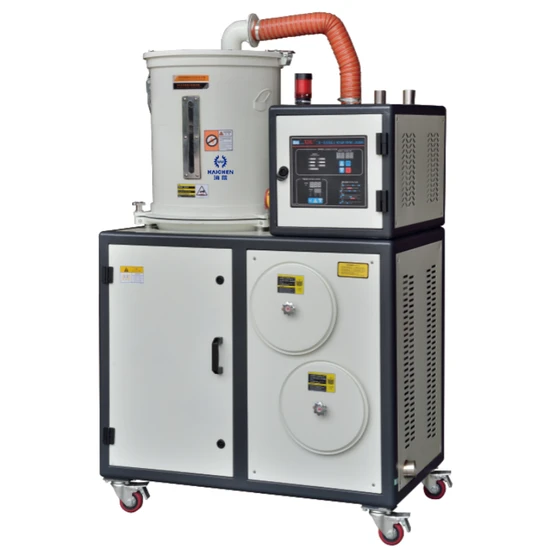

Haichen New Energy Saving XD-300H Honeycle Cylinder Dehumidification dryer for plastic injection molding machine
Product description

With high efficiency,XD series honeycomb rotation cylinder dehumidifier is mainly used for dehumidifying operation on engineering plastic of strong hugroscopic property.The body consists of ceramic honeycombs made of ceramic fiber and organic additive,and molecular sieve and slicon glue as basic material crystal sintered by high temperature with surface hard force to be attracted in the inner of honeycombs .So ublikely as general cyclinder-type or ortation tray type the powder particles produced by molecular nodes aging to be blown into the drying tube to pollute the plastic,and furthermore its endless using life and washable is unlikely as general molecular bodes to be aging and saturated should be replaced often.The water content will be sucked immediately when the moisture reture wind through pass the numerous microholes of cylinder honeycombs.So they have been dehumidified completely and have been the full dried wind with very low dew point.The principle of re-producing and dehumidification are same and carry out simultaneously.Only the reproduces wind blowing has reverse direction.

Featrue:
• The display screen shows re-producing temperatures setting and actual temperature.

• The dew point of dried wind hit -50°C degree.

• Main power switch with mechanical interlock function.

• The dehumidification system adopts double cooler structure,can guarantee very low return wind temperature and dew point.


Humidity and water content rate check list:

Dew Point	Relative Humidify(%)	Moisture Content
		PPM	%
+20	100	23.072	2.307
+10	52.50	12.117	1.212
0	26.10	6.027	0.603
-10	11.20	2.574	0.257
-20	4.40	1.025	0.103
-30	1.60	378	0.038
-40	0.60	128	0.013
-50	0.20	39	0.004

Main Technical Data:

Model	Regen.Heater Power(kw)	Dry Aur Flow(m³/hr)	Weight(kg)	External size(mm)	Pipe Size(inch)
XD-90H	3.5	90	156	900*520*1700	2"
XD-120H	3.5	120	190	900*620*1700	2"
XD-150H	4	150	220	1300*700*1700	2.5"
XD-200H	5.4	200	240	1300*700*1700	2.5"
XD-300H	7.2	300	260	1300*700*1800	3"
XD-400H	7.2	400	380	1300*700*1800	3"
XD-500H	10	500	400	1500*1000*1900	4"
XD-700H	10	700	410	1500*1000*1900	4"
XD-1000H	15	1000	500	1500*1200*1900	5"

Dry capacity specification:
