| Negotiable | 1 Set (MOQ) |

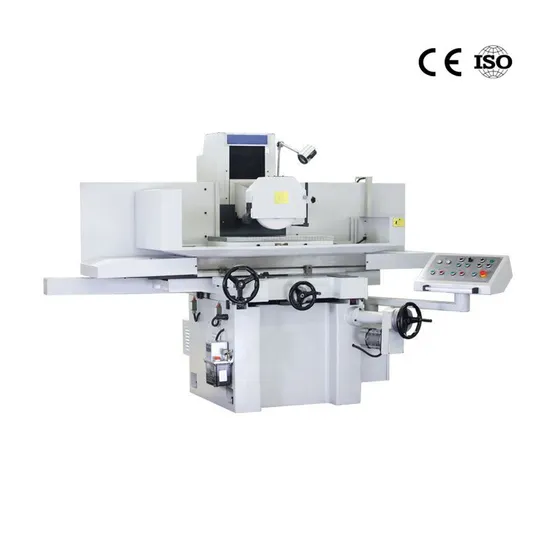

| Saddle Moving Surface Grinding Machine SGA4080 Feature |
| ·AH: Hydraulic longitudinal feed, Manual cross and vertical feed |
| ·AHR: Auto cross feed, Hydraulic longitudinal feed, Rapid vertical feed |
| ·AHD: Auto cross feed, Hydraulic longitudinal feed, Auto vertical feed |
| Specifications | SGA4080AH | SGA4080AHR | SGA4080AHD |
| Table size | 406x813mm | 406x813mm | 406x813mm |
| Magnetic chuck size | 400x800mm | 400x800mm | 400x800mm |
| Max. distance from spindle to table | 580mm | 580mm | 580mm |
| Table cross travel | 450mm | 450mm | 450mm |
| Table longitudinal travel | 910mm | 910mm | 910mm |
| Max. load capacity of table (include chuck) | 500kg | 500kg | 500kg |
| Speed of table longitudinal movement | 5-25m/min | 5-25m/min | 5-25m/min |
| Cross motion | |||
| Intermittent feed rate | 0.1-8mm/t | 0.1-8mm/t | 0.1-8mm/t |
| Rapid speed | 990mm/min | 990mm/min | 990mm/min |
| Feed of handwheel | 0.02mm/div | 0.02mm/div | 0.02mm/div |
| Vertical motion | |||
| Auto down feed rate | / | / | 0.005-0.5mm/t |
| Rapid down speed | / | 650 | 480 |
| Feed of handwheel | 0.005mm/div | 0.005mm/div | 0.005mm/div |
| Spindle rotating speed | 1450r/min (50HZ), 1750r/min (60HZ) | ||
| Grind wheel size | 350x40x127mm | ||
| Spindle motor power | 4kW | ||
| Floor space | 3600x2400x1900mm | ||
| G.W. | 3400kg | ||
| Packing size | 285x227x221cm | ||
| Standard Accessories | Optional Accessories | |
| Electrical magnetic chuck | Luxurious splashing board | |
| Coolant tank | Parallel wheel dresser | |
| Balancing arbor | Oil tank guard | |
| Wheel flange and wheel | Digital readout for Y/Z axis | |
| Wheel extractor | Balancing stand | |
| Standard dressing stand(not include diamond pen) | Include diamond pen | |
| Leveling wedge | Magnetic separator apparatus | |
| Tools and tool box | Magnetic separator and paper filter coolant tank | |
| Paper filter apparatus | ||
| Dust collector |
