Product Details
Product Description
Product Description

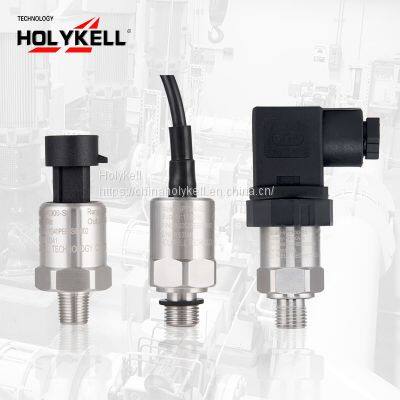

Product Description of Holykell Pressure Sensor HPT300:
HPT300-S compact pressure transmitter adopt the Flush Ceramic piezoresistive technology, 5-10 years long services life design, Automatic temperature compensation -40~80℃, and temperature drift Automatic modified linear ≤0.01%FS. It is widely applied in the engine fuel pressure, hydraulic pressure and gas pressure industries etc.
What's the Specification of Holykell Factory 4-20mA 0-10V Ceramic Water Pressure Sensor?
Model
| HPT300-S series
|
|
Accuracy
| ≤ ±1.0%F.S ≤ ±0.5%F.S ≤ ±0.25%F.S (Customized)
|
Diaphragm material
| Piezoresistive Flush Ceramic
|
Electronic Wire
| 2 Wires
| 3 Wires
|
Output
| 4~20mA
| 0~5V
| 0~10 V
| 0.5~4.5 V
| By Customized
|
Power Supply
| 12~36 V DC
| 12~36 V DC
| 15~36Vdc
| 5 V DC
| By Customized
|
Insulate resistance
| >100M Ω @50V
|
Electronic connection
| Terminal Box (DIN43650 Hirschman Connector, IP65)
|
Directly sealed cable IP67;
|
M12 4 Pins connector IP65;
|
Small Hirschman Connector; connection are optional.
|
Pressure connect port
| 1/8’’NPT male, 1/4’’NPT male
|
1/4’’NPT Female, G1/2’’ male, G1/4’’male/female,
|
7/16’’-20 UNF male/female are optional. (by Customized)
|
Response time
| ≤10ms
|
Certificate approving
| CE Certificate.
|
EMC Standard
| electromagnetic radiation:EN50081-1/-2
|
electromagnetic susceptibility:EN50082-2
|
Water Proof
| IP65 to IP67
|
Weight
| Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable)
|
In order to recommend you the most suitable products and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water ,oil or others.
2. Working Temperature? -30℃~80℃
3. Pressure range: 0-1bar...2000Bar optional
4. Output signal:4-20mA, 0-5V or others
