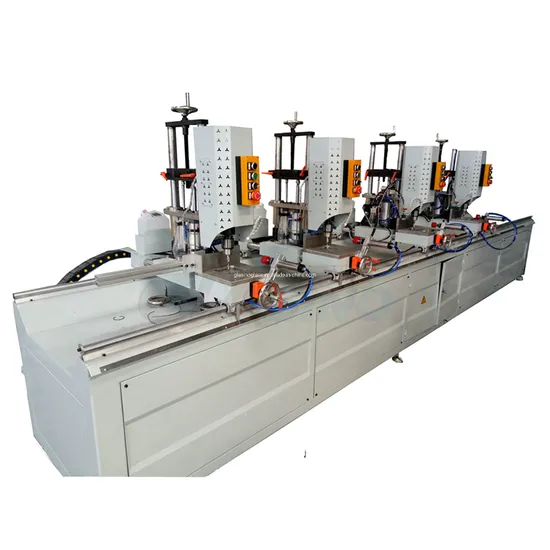

Multi-Head Aluminum Curtain Wall Drilling Machine

Product Description

Multi-head Aluminum curtain wall drilling machine
Equipment Features for Multi-head Aluminum curtain wall drilling machine
Glasino multi-head combination drilling machine is special for drilling of aluminum window, PVC window and curtain wall profiles. It is suitable for long profile process and mass production.
1. Max process cross section is 250*250mm, Max process length is 5000mm.
2. Pneumatic-hydraulic damp feeding system ensures smooth feeding.
3. Imported PLC control system to achieve machine head's linkage.
4. It could be equipped with drilling bits pack for grouping drilling.
5. Siemens Motors. Schneider button and other famous parts.
6. Customizable, include drilling heads quantity, machine size, drilling bits pack, voltage and so on
Details of Multi-head Aluminum curtain wall drilling machine
Technical Paramate

Model	LZZ4-13
Power Supply	380V50HZ
Power	4x0.75kw
Air pressure	0.5-0.8MPa
Max drilling hole diameter	ø13
Max processing profile section size	250*250mm
Max/Min distance between each group holes	5000-300mm
Max moving distance at horizontal direction of drilling head	120mm
Moving distance at vertical direction	150mm
Dimension	6000×1000×1900mm

Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning and training.Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receive the deposit.

---
