Three Phase Fhb31115 12nm Stepper Motor

Product Description

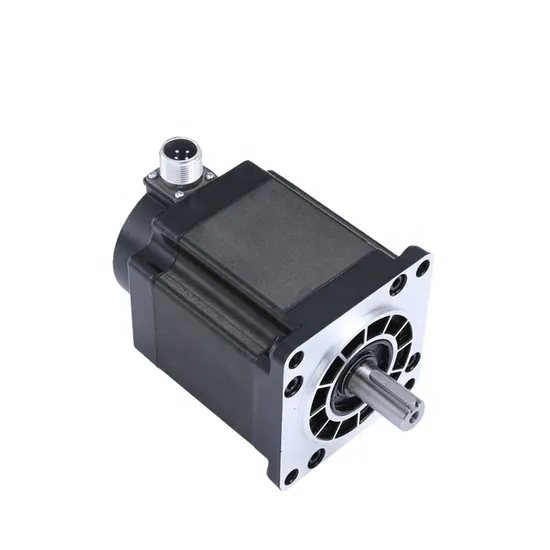

Three phase FHB31115 12N.m stepper motor
Product Description
Specifications
This motor is a brushless, synchronous electric motor that can divide a full rotation into a large number of steps. The motor's position can be controlled precisely, without any feedfack mechanism. Choice of motor shaft length, single or double shaft, optical encoder and planetary gearbox are available for most motors.
Step Angle Accuracy: ±5%(full step, no load)
Temperature Rise: 80°C Max
Ambient Temperature: -20°C ~ +50°C
Insulation Resistance: 100M Ω Min.500VDC
Dielectric Strength: 500V AC for one minute
Shaft Radial Play: 0.06mm Max.(450g-load)
Shaft Axial Play: 0.08mm Max.(450g-load)

Model	FHB31115
Step Angle(°)	1.2
Length L(mm)	148
Holding torque(N.m)	12
Current (A)	6.0
Rotor inertia(g.cm)	9720
Weight (kg)	6.6
shaft diameter(mm)	19
shaft length(mm)	40
shaft extension(mm)	feather key:4*20

products' show

Cetification

usage


Packaging & Shipping


Company Information
FAQ
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.

2. Q: Do you have the products in stock?
A: Our products are manufactured according to your order except the normal products .
3. Q: What's the delivery time?
A: I t usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.

4. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Miger people always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment
6. Q:What's your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.

---
