4 Ton 18 M Telehandler

Product Description

NO.	Items		Parameters
			HZTH4018
1.	Outline dimension	Length ( m m )	6530
2.		Width ( m m )	2380
3.		Height ( m m )	2485
4.	Dead weight (kg)		11300
5.	Wheelbase ( m m )		2900
6.	Capacity Kg		4000
7.	Max Lifting Height (mm)		17885
8.	Maximum height weight(kg)		2000
9.	Maximum full extension distance(mm)		14350
10.	Maximum lifting capacity at full extension(kg)		700
11.	Hydraulic system flow (1/min)		120
12.	Hydraulic fuel tank capacity (L)		140
13.	Engine	Brand	Cummins
14.		Model	QSB3.9-C125-30
15.		Emission	National III
16.		Power (kw@rev)	92/2200
17.		Torque(N@rev)	480/1600
18.	Maximum mobile speed (kmh)		40
19.	Grade ability ((% )		30%
20.	Departure angle(°)		30
21.	Swing angle of axle frame (°)		8
22.	Tire specification		16.70-20

Best ship solutions for save cost

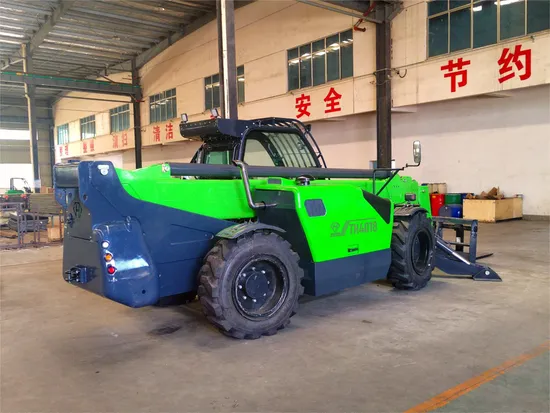

The telehandler HZTH4018 is the 4t forklift that can lift, transport, and stack goods. The system mainly consists of the dedicated 4x4 chassis, boom system, leveling system, power transmission system, electrical control system, and hydraulic system.
The dedicated chassis can achieve front wheel steering (default mode), four-wheel steering, and crab driving. Closed static pressure drive is adopted during driving, mainly composed of driving wheels, non independent steering system, frame, and electronic control system; the power source of the hydraulic system is the engine, and load sensitive hydraulic systems such as the main boom luffing cylinder, telescopic cylinder, and active leveling cylinder of the boom head are used for on-car operation.
Features:
1. Mobile independent closed variable system, energy-saving;
2. The open load sensing system is adopted for on-car.
3. Adding anti roll over limiters can alert and cut off on-car operations during excessive operations to prevent safety accidents;
4. Electronically controlled throttle, mobile with the ability to increase power with speed and exceed authority to handle off-road driving;
5. The on-car operation belt is equipped with the on-car stop button. If the operator accidentally releases their hand, the on-car operation will automatically stop.
Details of telehandler

Load Limiter
screen
Quick change fork
Joystic
45% Grade Ability
Maglev Adjustable Seat
Four Wheel Steering Type:Front Wheel Steering Type,Crab Steering Type,Crab Steering Type
Cab Driver View and protection
Standard with AC & Fan,Option Heater

Load chart and size
Production & Assembly & Exhibition& Test: with Bucket, climbing, off-road, noise test
Eertificate
telehandler is working in customer side
Company Profile
Established in 2017, Hunan Hua Drill Intelligent Technology Co., Ltd. (HuNan Hua Zuan industrial Co.,Ltd) is a company focusing on various businesses, including but not limited to the design, manufacturing, sales and maintenance services of engineering machinery products, leasing of construction machinery and equipment, R&D, sales and services of material handling equipment and port handling equipment, import and export of electromechanical products and technologies etc..
The company is located in Changsha Economic and Technological Development Zone, Hunan Province, with a registered capital of 10 million RMB. It has very strong capabilities for research and development. There are currently 18 personnel in R&D center, of whom 7 are with senior professional titles. Committed to creating a world-class advanced intelligent manufacturing enterprise, Hua Drill always devotes to innovation and development, it also keeps close cooperation with Dalian University of Technology.
1:What about the delivery time?
A:60 days after receiving the deposit.
2:What about the warranty time?
A:12 months after shipment or 2500 working hours, whichever occuts first.
3:What is the proportion of the deposit?
A:30% By TT and balance before ship.
4:what is the transport solution?
A:For 4007-4507-5007 by 40HQ container with 2 units. for 4018 by 40HQ container with 2 units.
5:What type of transmission?
A:standard telehandler with hydrostatic type transmission, optional : Engine with torque converter.
6:What is the maximum climbing capacity?
A:45%.
7:What's the fastest speed telehandler can go?
A:Standard machines with 28 km, optional 40Km.
8:Where has the telehandler been sold?
A:Currently, we had achieved bulk sales in Europe, Africa and Southeast Asia.
For example: Russia, Indonesia, South Africa, Cote d 'Ivoire, Nigeria Etc.
9:What kind of after-sales service do you have for your equipment?
A:We have a dealer to support you in Russia, Indonesia, Nigeria , South Africa , if your area is no dealer , we can send free with telehandler during the ship, when you need we can provide video talk for after service, or we can send engineer to you area.

---
