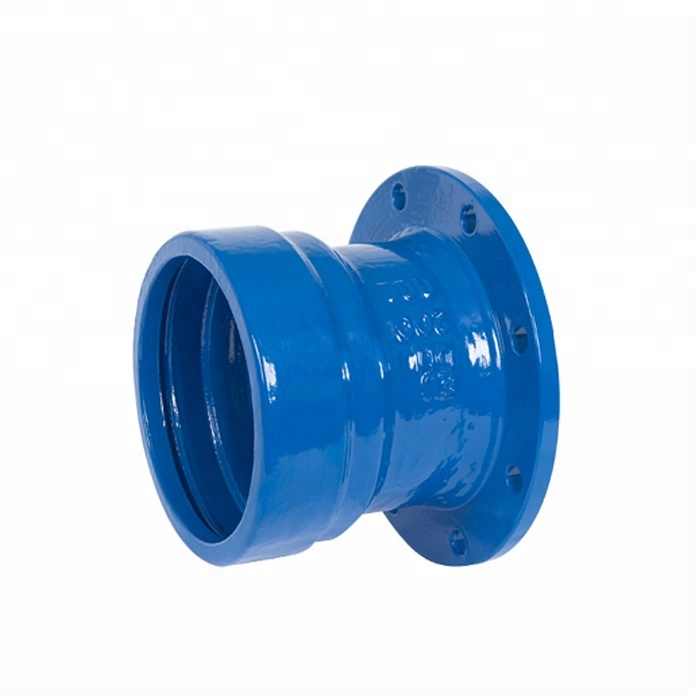

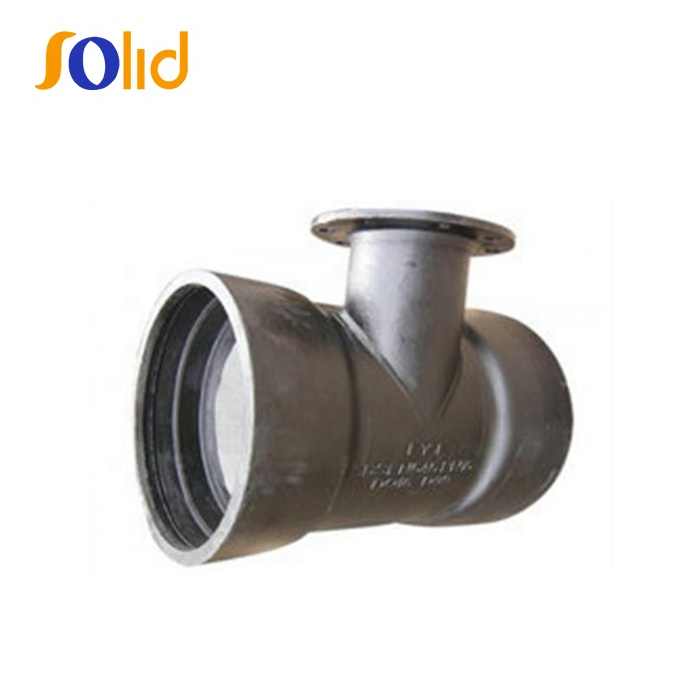

| 1 | Type: | Tyton (push on) Socket Pipe Fitting |

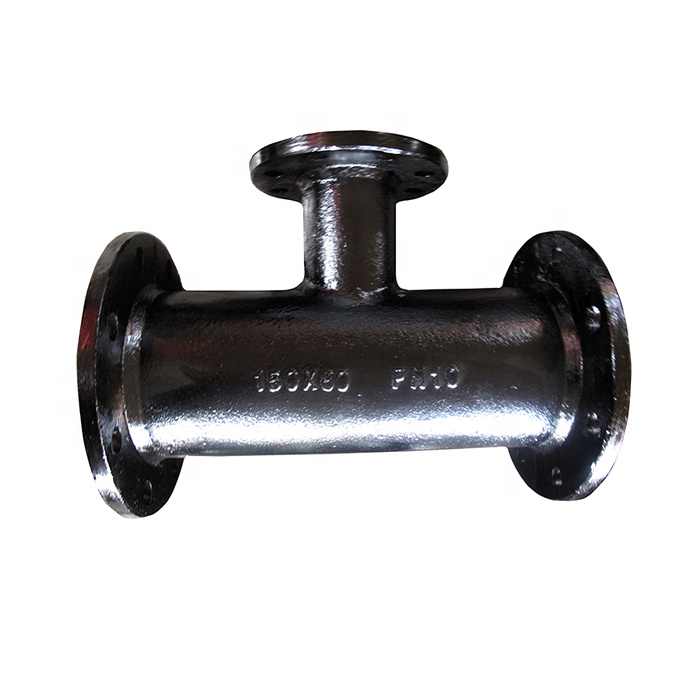

| Flanged Pipe Fitting | ||
| K type Bolted Gland Pipe Fitting | ||

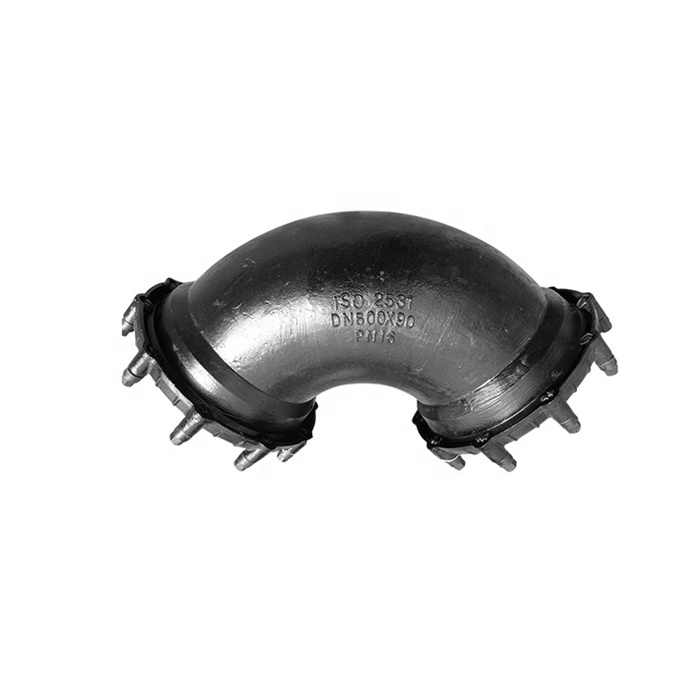

| Mechanical Joint Pipe Fitting | ||

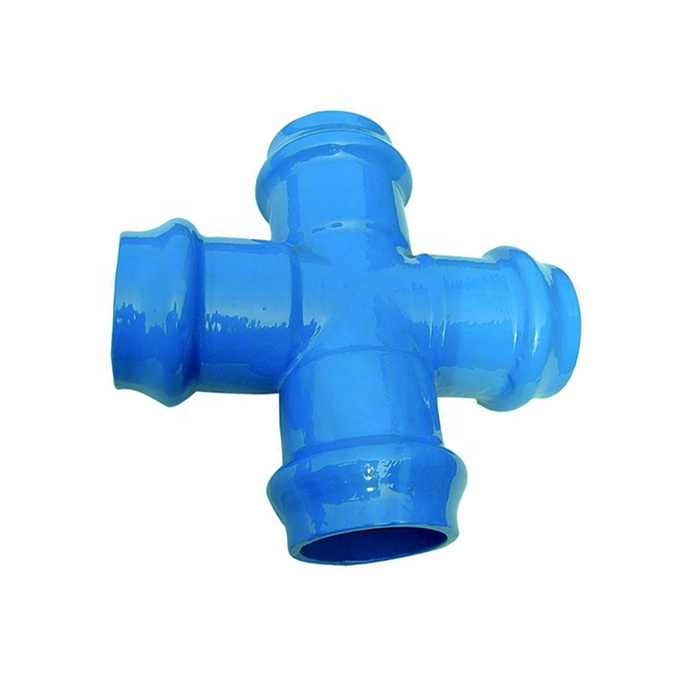

| Ductile Iron Pipe Fitting for PVC Pipe | ||
| 2 | Standard: | ISO2531, EN545, EN598, BS4772, EN12842, AWWA C110, AWWA C153, etc |
| 3 | Size: | DN80~2600mm |
| 4 | Pressure: | PN10, PN16, PN25, PN40 |
| 5 | Application: | Water supply project, drainage, sewage, irrigation, water pipeline. |
| 6 | Certificate: | ISO9001, BV, WRAS, BSI |
| 7 | Internal Coating: | a). Portland cement mortar lining |
| b). Sulphate Resistant cement mortar lining | ||
| c). High-Aluminum cement mortar lining | ||
| d). Fusion bonded epoxy coating | ||
| e). Liquid epoxy painting | ||
| f). Black bitumen painting | ||
| 8 | External Coating: | a). Zinc + bitumen painting |
| b). Fusion bonded epoxy coating | ||
| c). Zinc-aluminum alloy + liquid epoxy painting | ||
| 9 | Accessories: | Rubber rings & Gaskets : SBR or EPDM Bolts & Nuts : Galvanized carbon steel G4.8/G8.8, or SS304/SS316 |
| 10 | Packing: | Wooden case/pallet with plastic layer, or as per customer's requirements. |
