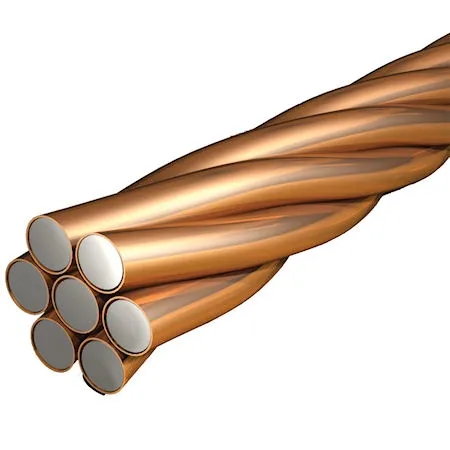

Js Meitong Copper Clad Steel Stranded Wire

Product Description

Product Description
Application Earth rod for power industry Trolly wire for power transmission Overhead-contact systems for railway Connectors for electronic components Strengthened conductivity wire core for special cable Product Parameters

Specification and Technology date
Section area (mm²)	Diameter of single wire(mm)	Number of strand	Diameter of the entire Strand(mm)	Weight for reference(kg/km)	Electrical conductivity of a single wire(%)
16	1.70	7	5.10	130	14-40
25	2.14	7	6.36	200
35	2.52	7	7.50	280
50	3.00	7	9.0	400
	1.80	19
70	3.50	7	10.0	500
	2.14	19
95	2.52	19	12.6	766
120	2.84	19	14	980
150	3.15	19	15.8	1230
	2.28	37
185	3.52	19	17.5	1520
	2.52	37
240	4.00	19	20.0	1970
	2.88	37
300	3.20	37	22.4	2430

Packaging & Shipping
Company Profile
Our Advantages
After Sales Service
FAQ Do you accept OEM or ODM? Of course.We also have a professional design team who can assistant you to design. What is minimum order quantity? Usually accept 500 kgs for trial order , it is depended on different items with different materials and sizes.Please kindly contact us for details! Thanks! What is your sample policy? 1.Paid samples are available as per requirement and specifications.Usually we only charge $50/time,usually within 10kgs. 2.Sample will be sent to you by express with freight collect, so please inform us your courier account number,or you can prepay to us the express cost which we have best channel lower to 70% discount. What certification do you have? Our product has passed the ISO certificate.Quality management system,American needed certification,also complete the BSCl audits.And some other needed third party test report and certifications. What information should I let you know if i want to get a quote? Please offer the specification of the product if possible.Such as material,logo color,size, content list, quantity.etc.Or contact us directly just by a thought. What is the delivery date? Our products are normally shipped about 25-35 days after order confirmation. But it may take longer or shorter up to different order quantity. How can I know order status? We will acknowledge receipt of your order by e-mail. Some further emails will be sent to you to check about the production details of your goods by specific sales assistant. We will contact you if we have any queries about productions .lf you don't receive any email from us, which means your production goes smoothly and will be shipped as our contract. You can also contact us if you have any question. PP sample photos will send to you before we produce,Bulk sample photo wil send to you before we ship.

---
