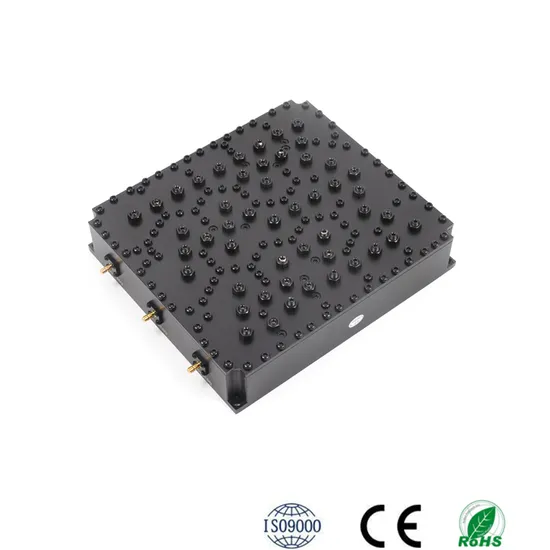

758-776/788-824/851-869MHz Triplexer(SMB Female, IP60)
A triplexer is used in triple-band devices for smartphones and wireless devices such as wireless LAN. It is located at the entrance from the antenna, and is a filter element of the 4-port that separates the three frequency ranges of the triple-band.The device having three input ports and one output port is known as triplexer. This is shown in the figure-1 above. The device which operates at radio frequency is known as RF triplexer. It is widely used in wireless communication systems.
Triplexer is usually designed using passive techniques in order to minimize size and cost. It offers good isolation between ports and minimal insertion loss over individual paths. It offers good return loss at all the input and output ports.Topwave model TPW-TP-7586-SMBF, a 758-776MHz & 788-824/851-869MHz RF Triplexer with SMB female connector. The low band covering UHF, Tetra frequency range, it is widely required for public safety systems.

Features & Benefits

·Guaranteed Parameter Compliance
·Narrow Frequency Band Coverage
·Low Insertion Loss
·Low VSWR
·Indoor Using IP60
·Available with Type N, 7/16DIN or 4.3/10 Connectors

Electrical & Mechanical Specifications

Model No.	TPW-TP-7586-SMBF
Port Name	CH1	CH2	CH2
Frequency(MHz)	758-776	788-824	851-869
Return Loss(dB)	≥18	≥18	≥18
Insertion Loss(dB)	≤2.0	≤1.0	≤2.0
In-band Ripple(dB)	≤0.8
Isolation(dB)	≥80
Impedance	50 ohm
Power Rating(W)	25W (average Per Port)
Operating Temperature (deg)	-40~+85ºC
Connector	SMB-female
Color	Black
Weight(kg)	2.5KG(MAX)
Relative Humidity	5%-95%
