| Working voltage | 380V/50HZ | Air pressure | 0.4-0.6Mpa |
| Total power | 30kW | Center height | 1000mm |
| Number of winding heads | 2 | Central space between winding head | 411mm |
| Winding rotation speed | 9-95rpm | Winding diameter | 4-40mm |
| Traction speed | 0.1-1.0m/min | Traction force | 40kN |
| Clamping length | 1200mm | Clamping width | 500mm |
| Cutting range | 500x110mm (WxH) | Cutting speed | 2850rpm |
| Cutting stroke | 700mm | Length setting mode | Limit switch |
| Dimension | 20000x1850x1450mm | Pitch precision | +/- 1mm |

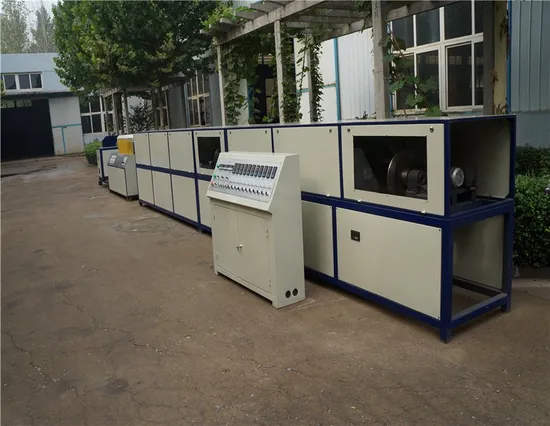

FRP MG-26 4T Rebar Pultrusion Machine The machine includes: | |||
| Items | Description | Qty | Technical Data |
| 1 | Roving creels-For Fiberglass/basalt fiber | 2pcs | Ivory paint, combined structure, easy accessibility Rollers capacity: 90/5 layers Equipped with ceramic type guider Dimension: 2000mm(L)x700mm(W)x2000mm(H) |
| 2 | Resin bath -for UPR, Vinyl resin etc. | 1pc | Capacity: 50kg Body of bath uses stainless steel plate Bath dimension: 1030mm(L)x720mm(W)x190mm(H) Dimension:1110mm(L)x810mm(W)x900mm(H) |
| 3 | Heating oven (Winding and unwinding device) | 1pc | Number of winding head: 2 Center distance between winding heads: 411mm Winding power: 0.75kW Winding rotation speed: 9-95rpm Heating oven power: 10x2.4kW Number of temperature control zones: 1+2x5 (1 zone as spare) Unwinding mode: frequency control motor Dimension: 6000mm(L)x1140mm(W)x1380mm(H) |
| 4 | Pulling device | 1pc | Power: 380V/50Hz 2.2kW Max traction force: 40kN Traction speed: 0.1m-1.0m/min Clamping length: 1200mm Clamping rubber length: 500mm Clamping mode: caterpillar type Dimension:2100mm(L)x1300mm(W)x1450mm(H) |
| 5 | Cutter | 1pc | Cutting range: 500mm(W)x110mm(H) Rotation speed of cutting blade: 2850rpm Cutting power: 380V/50HZ 2.2kW Diameter of cutting blade: ∮400mm/∮50mm (inner) Dust collection: vacuum cleaner 220V 3.5kW Cutting tracing stroke: 700mm Clamping method: front and back double clamping Cutting modes: auto/manual Length fixing method: by flapper Cutting precision: +/- 2mm Dimension: 1850mm(L)x1250mm(W)x1510mm(H) |
| 6 | Creel for finished products | 1pc | Structure: square tube and roller Standard configuration: platform type Dimension: 6000mm(L)x550mm(W)x900mm(H) |
| 7 | Rolling Machine (If required) | 1pc | Rolling diameter range:<12mm Rolling No. of rebar: 2pcs Diameter of winding plate: Max.2000 (adjustable) Width of winding plate: 200mm Rolling torque motor: YEJC112-4/6, 4NM, 6 pole |
