5 axis Mini CNC Mill

Product Details

Product Details

Product Description

Product Description

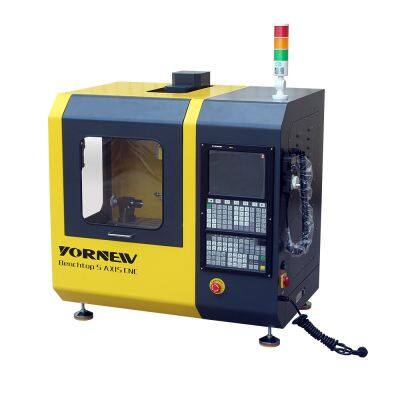

Product No: MX220Product Name: 5 axis Mini CNC Mill
Features
(1).The brand new MX220 is a powerful mini CNC machine that is quick to set up, easy to operate, very stable, highly dynamic, and requires very little maintenance.
(2).High performance 4 axis milling CNC controlle.
(3).Selection of high -quality casting materials,more compact.
(4).High-precision linear guide.
(5).X, Y, Z, A four axis micron level interpolation accuracy controlling;
(6).U disc/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(7).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(8).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
(9).DXF+G code template function, converting DXF automatically to G code for processing.
(10).With the automatic aligning instrument.
(11).Teaching function: Teaching+ simplified instruction programming,teaching methods in table format, that is simple and intuitive.
(12).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(13). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
(14).10 inch super large colorful LCD screen.
(15).Applicable industry: Mini CNC mill is perfect for schools, small job shops, or as a second machine.
Technical parameters
Positioning accuracy
0.02mm
Repeatability accuracy
0.01mm
X axis travel
220mm
Y axis travel
120mm
Z axis travel
200mm
A axis Rotate
360°(optiona axis)
Tool DIA. range
2-12mm
Control system
KY1000MC CNC Controller
Instruction
DXF+G code template function, converting DXF automatically to G code for processing
MPG hand wheel
5 axis
Spindle motor
2.2kw
Spindle speed
24000r/min
The max moving speed
2000mm/min
The max feeding speed
1000mm/min
Transmission
ball screw
guide rail
High-precision linear guide
Table size
460*130mm
Max. load
30kg
Table structure
Full cast iron
Power
220VAC / 110VAC
Weight(NW/GW)
180kg/220kg
Overall dimension
930×750×920mm
Packing size
970*850*1100m
