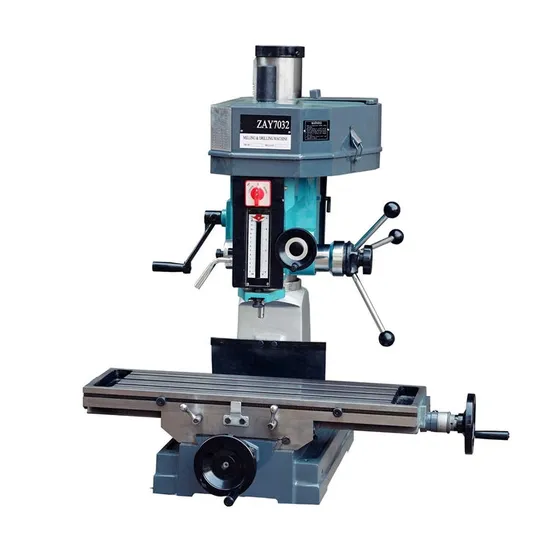

Super X1 Energy Saving Small Bench Drilling and Milling Machine

Product Description

Recommend Products
view more >> Recommended by seller

Rectificadora Engine Block And Cylinder Head metal mini Surface Grinding Machine $6,850.00 - $11,420.00 / set 1 set

High Power 1530P 2kw CNC Machine Plate Fiber Laser Cutting Steel $8,900.00 - $16,800.00 / set 1.0 set

Nice Price Hot Selling Tornos para metal Gap Bed Conventional Manual Lathe Machine $780.00 - $5,220.00 / set 1.0 set

High Precision CNC Vertical Machining Center VMC CNC 3 Axis 5 Axis Milling Machine of SMAC $10,800.00 - $27,070.00 / set 1.0 set

Plastic Injection Manufacturers Automatic Plastic Injection Molding Machine 120T $14,210.00 - $20,290.00 / set 1 set

China heavy duty metal CNC Plasma Cutter Plasma Cutting Machine $4,880.00 - $7,800.00 / set 1.0 set

220V 350W Conventional Torno Para Metal Working Bench Lathe Machine $690.00 - $4,255.00 / set 1.0 set

Exquisite Quality Metal Hydraulic Hose Press Workshop Press Machine $2,190.00 - $4,380.00 / set 1 set
Products Description
Introduction
1.Multifunctional drilling and milling machine 2.Three axis hardened treatmentGear
3.transmission milling head



1.Universal milling head,machining flexibility 2.Three axis hardened treatment

3.multi-functional drilling and milling machine

4.X axis mechanical feed,Y.Z axis can be added the device

5.Gear transmission milling head
Specifcation

Specification	unit	X1/Super X1	SX1	X2	X3	Super-X3	X4
Drilling diameter	mm	10	10	13	25	25	45
End milling capacity	mm	10	10	16	25	25	28(V)/80(H)
Face milling capacity	mm	16	16	30	50	50	M12 (tapping)
Headstock travel (Z)	mm	230	230	180	380	300	---
Spindle taper		MT2	MT2	MT3 or R8	MT3 or R8	MT3 or R8	MT4
Motor Power	W	150	150	350	600	1000	600
Spindle speed (H)	rpm	100-2000	100-2000	100-2500	100-2000	100-1750	95-1600
Spindle speed (L)	rpm	100-1000	100-1000	100-1000	100-1000	---	---
Table size	mm	240X145	240X145	390X92	550X160	550X160	550X160
Weight	kgs	32/44	40/56	50/68	165/198	165/198	165/198

FAQ
Q.What are your normal lead times? A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A. We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
Super X1 Energy Saving Small Bench Drilling Milling Machine drilling and milling machine

---
