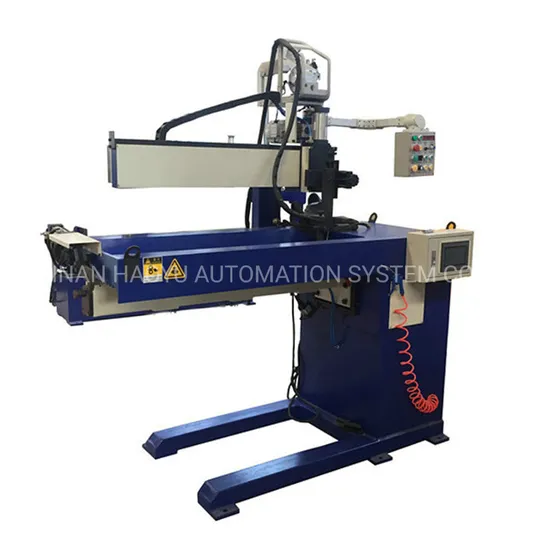

MIG Longitudinal Seam CNC Automatic Welding Machine for Round Tank

Product Description

MIG longitudinal seam CNC automatic welding machine for steel/stainless steel round tank
Application Weld longitudinal seam on cylinder/tank. Welding process will be continual and steady. MIG welding with wire feeder. Machine can work continuously for 24-hour. Technique Parameters

Applicable diameter	250mm-650mm
Applicable length	400mm-1200mm
Material thickness	2mm-5mm
Material	mild steel
Control system	Japan Omron PLC and touch screen
Welding speed	700mm/min
Welding torch moving range in left-right direction	100mm
Welding gun lifting range	100mm
Welding power source	Japan PanasonicYC-400TX
Machine working voltage	380v 3phase 50hz

1. MIG welding torch is pneumatically moved in up-down direction. Welding torch can be adjusted up and down, side to side and angled turn.
2. Drive device includes motor, straight rack & pinion and linear guide way.
3. Japan OMRON CP-1H 40CDT PLC machine as the control system,control the implementation of the welding program. Stable system, simple structure, and easy to maintain. Touch screen as the input and output interface.Welding length, arc striking & ending time, welding current and welding speed can be input through the interface. Welding mode and welding specification can be preset,saved and recalled. With the help of touch man-machine interface,it is convenient to change parameters and status.
4. Equipped with pneumatic cylinders to fix product. Cylinders are used to control copper clamping bar. They will fix longer tank firmly.
5. Push-type wire feeder is installed at the moving arm of the torch holder for short distance wire feeding and give stable feeding.Machine is with high welding voltage and slow wire feeding performance, which guarantees reliable arc igniting. Machine is also with low welding voltage and low welding current for filling crater.
Jinan Haoyu Automation system Co., Ltd (another name is Jinan Haoyu CNC Machinery Co., Ltd) is a high-tech private company located in Jinan City ,Shandong province. We have been a professional manufacturer in the field of welding automation over 17 years.
Our products mainly include automatic welding machine, robot welding station, automatic pipe cutting machine, automatic material handling equipment, automatic assembling machine,these machines are widely used in the areas of automobile,construction machinery, railway vehicle, electric power, shipbuilding, pressure container, petrochemical, house appliances and military industry, etc.
We established a long-term cooperative relationship with more than 60 countries and regions, such as Canada,Italy,Australia,United States,India,south America.Our welding machines are recognized by customers with quality and excellent service.the company have obtained CE and ISO certification .
With strong R&D staffs and Strict QC&QA team,so can design and produce as customers' requirements.Our sales team provide perfect support from Pre-sale and after-sale, in-sale.Technology Improvement and perfect products are the eternal pursuit of the company.
Welcome to Visit us at any time!

---
