China Bearing Manufacturer Supply Pillow Block Bearing UCP201-08, 201 UCP202-9, 202-10, 202 UCP203-11, 203 Inch Ball Bearing Units Insert Bearing Housings

Product Description

Product Description
Pillow block ball bearing is a variant of deep groove ball bearing, characterized by a spherical outer diameter surface on the outer ring, which can be fitted into the corresponding concave spherical surface of the bearing seat for centering.

This type of bearing is mainly used to withstand combined radial and axial loads, mainly radial loads, and is generally not suitable for bearing axial loads alone.
The internal structure of pillow block ball bearing is the same as that of the deep groove ball bearing, but the inner ring is wider than the outer ring, and the outer ring has a truncated spherical outer surface that can automatically adjust its center when matched with the concave spherical surface of the bearing housing.
The production range of Pillow block ball bearing

Bearings NO.

Shaft Dia.

Unit No.UCP

Unit No.UCF

Unit No.UCFC

Unit No.UCFL

Unit No.UCT

Unit No.UCHA

Unit No.UCPA

Unit No.UCPH

Unit No.UCFA

Unit No.UCFB

Inch

mm

UC201-8

1/2

12.7

UCP201-8

UCF201-8

UCFC201-8

UCFL201-8

UCT201-8

UCHA201-8

UCPA201-8

UCPH201-8

UCFA201-8

UCFB201-8

UC201

12

UCP201

UCF201

UCFC201

UCFL201

UCT201

UCHA201

UCPA201

UCPH201

UCFA201

UCFB201

UC202-9

9/16

14.288

UCP202-9

UCF202-9

UCFC202-9

UCFL202-9

UCT202-9

UCHA202-9

UCPA202-9

UCPH202-9

UCFA202-9

UCFB202-9

UC202-10

5/8

15.875

UCP202-10

UCF202-10

UCFC202-10

UCFL202-10

UCT202-10

UCHA202-10

UCPA202-10

UCPH202-10

UCFA202-10

UCFB202-10

UC202

15

UCP202

UCF202

UCFC202

UCFL202

UCT202

UCHA202

UCPA202

UCPH202

UCFA202

UCFB202

UC203-11

11/16

17.463

UCP203-11

UCF203-11

UCFC203-11

UCFL203-11

UCT203-11

UCHA203-11

UCPA203-11

UCPH203-11

UCFA203-11

UCFB203-11

UC203

17

UCP203

UCF203

UCFC203

UCFL203

UCT203

UCHA203

UCPA203

UCPH203

UCFA203

UCFB203

UC204-12

3/4

19.05

UCP204-12

UCF204-12

UCFC204-12

UCFL204-12

UCT204-12

UCHA204-12

UCPA204-12

UCPH204-12

UCFA204-12

UCFB204-12

UC204-13

13/16

20.638

UCP204-13

UCF204-13

UCFC204-13

UCFL204-13

UCT204-13

UCHA204-13

UCPA204-13

UCPH204-13

UCFA204-13

UCFB204-13

UC204

20

UCP204

UCF204

UCFC204

UCFL204

UCT204

UCHA204

UCPA204

UCPH204

UCFA204

UCFB204

UC205-13

13/16

20.638

UCP205-13

UCF205-13

UCFC205-13

UCFL205-13

UCT205-13

UCHA205-13

UCPA205-13

UCPH205-13

UCFA205-13

UCFB205-13

UC205-14

7/8

22.225

UCP205-14

UCF205-14

UCFC205-14

UCFL205-14

UCT205-14

UCHA205-14

UCPA205-14

UCPH205-14

UCFA205-14

UCFB205-14

UC205-15

15/16

23.813

UCP205-15

UCF205-15

UCFC205-15

UCFL205-15

UCT205-15

UCHA205-15

UCPA205-15

UCPH205-15

UCFA205-15

UCFB205-15

UC205-16

1

25.4

UCP205-16

UCF205-16

UCFC205-16

UCFL205-16

UCT205-16

UCHA205-16

UCPA205-16

UCPH205-16

UCFA205-16

UCFB205-16

UC205

25

UCP205

UCF205

UCFC205

UCFL205

UCT205

UCHA205

UCPA205

UCPH205

UCFA205

UCFB205

UC206-17

1-1/16

26.988

UCP206-17

UCF206-17

UCFC206-17

UCFL206-17

UCT206-17

UCHA206-17

UCPA206-17

UCPH206-17

UCFA206-17

UCFB206-17

UC206-18

1-1/8

28.575

UCP206-18

UCF206-18

UCFC206-18

UCFL206-18

UCT206-18

UCHA206-18

UCPA206-18

UCPH206-18

UCFA206-18

UCFB206-18

UC206-19

1-3/16

30.163

UCP206-19

UCF206-19

UCFC206-19

UCFL206-19

UCT206-19

UCHA206-19

UCPA206-19

UCPH206-19

UCFA206-19

UCFB206-19

UC206-20

1-1/4

31.75

UCP206-20

UCF206-20

UCFC206-20

UCFL206-20

UCT206-20

UCHA206-20

UCPA206-20

UCPH206-20

UCFA206-20

UCFB206-20

UC206

30

UCP206

UCF206

UCFC206

UCFL206

UCT206

UCHA206

UCPA206

UCPH206

UCFA206

UCFB206

UC207-20

1-1/4

31.75

UCP207-20

UCF207-20

UCFC207-20

UCFL207-20

UCT207-20

UCHA207-20

UCPA207-20

UCPH207-20

UCFA207-20

UCFB207-20

UC207-21

1-15/16

33.338

UCP207-21

UCF207-21

UCFC207-21

UCFL207-21

UCT207-21

UCHA207-21

UCPA207-21

UCPH207-21

UCFA207-21

UCFB207-21

UC207-22

1-3/8

34.925

UCP207-22

UCF207-22

UCFC207-22

UCFL207-22

UCT207-22

UCHA207-22

UCPA207-22

UCPH207-22

UCFA207-22

UCFB207-22

UC207-23

1-7/16

36.513

UCP207-23

UCF207-23

UCFC207-23

UCFL207-23

UCT207-23

UCHA207-23

UCPA207-23

UCPH207-23

UCFA207-23

UCFB207-23

UC207

35

UCP207

UCF207

UCFC207

UCFL207

UCT207

UCHA207

UCPA207

UCPH207

UCFA207

UCFB207

UC208-24

1-1/2

38.1

UCP208-24

UCF208-24

UCFC208-24

UCFL208-24

UCT208-24

UCHA208-24

UCPA208-24

UCPH208-24

UCFA208-24

UCFB208-24

UC208-25

1-9/16

39.688

UCP208-25

UCF208-25

UCFC208-25

UCFL208-25

UCT208-25

UCHA208-25

UCPA208-25

UCPH208-25

UCFA208-25

UCFB208-25

UC208

40

UCP208

UCF208

UCFC208

UCFL208

UCT208

UCHA208

UCPA208

UCPH208

UCFA208

UCFB208

UC209-26

1-5/8

41.275

UCP209-26

UCF209-26

UCFC209-26

UCFL209-26

UCT209-26

UCHA209-26

UCPA209-26

UCPH209-26

UCFA209-26

UCFB209-26

UC209-27

1-11/16

42.863

UCP209-27

UCF209-27

UCFC209-27

UCFL209-27

UCT209-27

UCHA209-27

UCPA209-27

UCPH209-27

UCFA209-27

UCFB209-27

UC209-28

1-3/4

44.45

UCP209-28

UCF209-28

UCFC209-28

UCFL209-28

UCT209-28

UCHA209-28

UCPA209-28

UCPH209-28

UCFA209-28

UCFB209-28

UC209

45

UCP209

UCF209

UCFC209

UCFL209

UCT209

UHAC209

UCPA209

UCPH209

UCFA209

UCFB209

UC210-29

1-13/16

46.038

UCP210-29

UCF210-29

UCFC210-29

UCFL210-29

UCT210-29

UCHA210-29

UCPA210-29

UCPH210-29

UCFA210-29

UCFB210-29

UC210-30

1-7/8

47.625

UCP210-30

UCF210-30

UCFC210-30

UCFL210-30

UCT210-30

UCHA210-30

UCPA210-30

UCPH210-30

UCFA210-30

UCFB210-30

UC210-31

1-15/16

49.213

UCP210-31

UCF210-31

UCFC210-31

UCFL210-31

UCT210-31

UCHA210-31

UCPA210-31

UCPH210-31

UCFA210-31

UCFB210-31

UC210-32

2

50.8

UCP210-32

UCF210-32

UCFC210-32

UCFL210-32

UCT210-32

UCHA210-32

UCPA210-32

UCPH210-32

UCFA210-32

UCFB210-32

UC210

50

UCP210

UCF210

UCFC210

UCFL210

UCT210

UCHA210

UCPA210

UCPH210

UCFA210

UCFB210

UC211-32

2

50.8

UCP211-32

UCF211-32

UCFC211-32

UCFL211-32

UCT211-32

UCHA211-32

UCPA211-32

UCPH211-32

UCFA211-32

UCFB211-32

UC211-33

2-1/16

52.388

UCP211-33

UCF211-33

UCFC211-33

UCFL211-33

UCT211-33

UCHA211-33

UCPA211-33

UCPH211-33

UCFA211-33

UCFB211-33

UC211-34

2-1/8

53.975

UCP211-34

UCF211-34

UCFC211-34

UCFL211-34

UCT211-34

UCHA211-34

UCPA211-34

UCPH211-34

UCFA211-34

UCFB211-34

UC211-35

2-3/16

55.563

UCP211-35

UCF211-35

UCFC211-35

UCFL211-35

UCT211-35

UCHA211-35

UCPA211-35

UCPH211-35

UCFA211-35

UCFB211-35

UC211

55

UCP211

UCF211

UCFC211

UCFL211

UCT211

UCHA211

UCPA211

UCPH211

UCFA211

UCFB211

UC212-36

2-1/4

57.15

UCP212-36

UCF212-36

UCFC212-36

UCFL212-36

UCT212-36

UCHA212-36

UCPA212-36

UCPH212-36

UCFA212-36

UCFB212-36

UC212-37

2-5/16

58.738

UCP212-37

UCF212-37

UCFC212-37

UCFL212-37

UCT212-37

UCHA212-37

UCPA212-37

UCPH212-37

UCFA212-37

UCFB212-37

UC212-38

2-3/8

60.355

UCP212-38

UCF212-38

UCFC212-38

UCFL212-38

UCT212-38

UCHA212-38

UCPA212-38

UCPH212-38

UCFA212-38

UCFB212-38

UC212-39

2-7/16

61.913

UCP212-39

UCF212-39

UCFC212-39

UCFL212-39

UCT212-39

UCHA212-39

UCPA212-39

UCPH212-39

UCFA212-39

UCFB212-39

UC212

60

UCP212

UCF212

UCFC212

UCFL212

UCT212

UCHA212

UCPA212

UCPH212

UCFA212

UCFB212

UC213-40

2-1/2

63.5

UCP213-40

UCF213-40

UCFC213-40

UCFL213-40

UCT213-40

UC213-41

2-9/16

65.088

UCP213-41

UCF213-41

UCFC213-41

UCFL213-41

UCT213-41

UC213

65

UCP213

UCF213

UCFC213

UCFL213

UCT213

UC214-42

2-5/8

66.675

UCP214-42

UCF214-42

UCFC214-42

UCFL214-42

UCT214-42

UC214-43

2-11/16

68.263

UCP214-43

UCF214-43

UCFC214-43

UCFL214-43

UCT214-43

UC214-44

2-3/4

69.85

UCP214-44

UCF214-44

UCFC214-44

UCFL214-44

UCT214-44

UC214

70

UCP214

UCF214

UCFC214

UCFL214

UCT214

UC215-45

2-13/16

71.438

UCP215-45

UCF215-45

UCFC215-45

UCFL215-45

UCT215-45

UC215-46

2-7/8

73.025

UCP215-46

UCF215-46

UCFC215-46

UCFL215-46

UCT215-46

UC215-47

2-15/16

74.613

UCP215-47

UCF215-47

UCFC215-47

UCFL215-47

UCT215-47

UC215-48

3

76.2

UCP215-48

UCF215-48

UCFC215-48

UCFL215-48

UCT215-48

UC215

75

UCP215

UCF215

UCFC215

UCFL215

UCT215

UC216-50

3-1/8

79.375

UCP216-50

UCF216-50

UCFC216-50

UCFL216-50

UCT216-50

UC216

80

UCP216

UCF216

UCFC216

UCFL216

UCT216

UC217-52

3-1/4

82.55

UCP217-52

UCF217-52

UCFC217-52

UCFL217-52

UCT217-52

UC217-55

3-7/16

87.313

UCP217-55

UCF217-55

UCFC217-55

UCFL217-55

UCT217-55

UC217

85

UCP217

UCF217

UCFC217

UCFL217

UCT217

UC218-56

3-1/2

88.9

UCP218-56

UCF218-56

UCFC218-56

UCFL218-56

UCT218-56

UC218

90

UCP218

UCF218

UCFC218

UCFL218

UCT218

How to select type?
The types of pillow block ball bearings include top threaded pillow block ball bearings, tapered pillow block ball bearings, and eccentric sleeve outer spherical ball bearings. Depending on different usage environments and cooperation methods, the appropriate type can be selected. For example, the outer spherical ball bearing with top thread is applied to shafts with large stiffness and deflection differences. This type of bearing has sealing rings on both sides to tightly prevent dirt from entering. It is filled with an appropriate amount of lubricant at the factory and does not need to be cleaned or lubricated before installation. The performance of the outer spherical ball bearing with eccentric sleeve is basically the same as that of the outer spherical ball bearing with top wire, except that the top wire is not on the inner ring, but on the eccentric sleeve. The inner hole of the conical bore outer spherical ball bearing is a conical bore with a 1:12 taper, which can be directly installed on the conical shaft or installed on the shoulder free optical axis with the help of a tightening sleeve, and the bearing clearance can be adjusted.
Detailed Photos
The inner ring of the Insert bearing produced by our factory has undergone local annealing treatment to increase material toughness and prevent cracking. The material of the bearing housing is HT180/HT200, which has undergone tensile testing and is not easily broken, with a long service life.

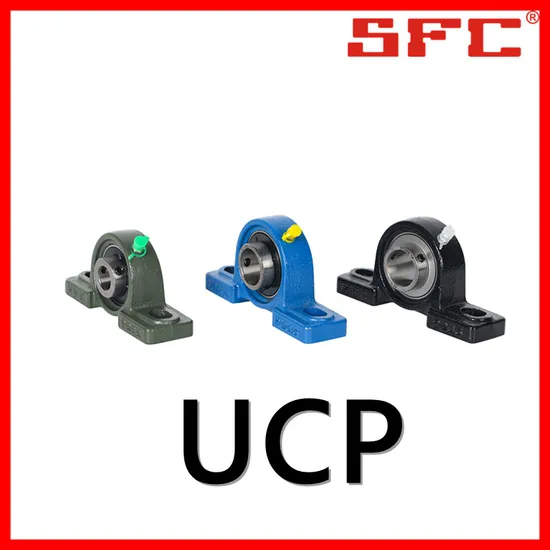

The color of the housings can be customized according to customer requirements. In addition, if the quantity meets the minimum order quantity, we can cast the customer's brand on the housings.


Packaging & Shipping
Single box have neutral white box and SFC brand box,OEM BOX packaging have MOQ,about specific details,please ask our salesman.
Company Profile
SFC factory was established in 2003, mainly producing middle and high quality automobile bearing,tapered roller bearings, deep groove ball bearings, pillow block ball bearings,. We have nearly 20 years of experience in bearing production and processing, research and development, and advanced production technology. The bearings we produce have stable quality, high speed and long service life. They are widely used in agricultural machinery, food machinery, packaging machinery, motors, motorcycles, automobiles and other industries.

Our products are sold all over the country and exported to Russia, Mexico, Italy, Brazil, Southeast Asia, India and the Middle East, of which 60% are our own brand "TBAI" "SFC" and 40% are OEM authorized by our customers. production.

Our Advantages
Our factory has complete testing equipment to ensure that every bearing is tested and qualified before delivery

We use high-quality raw materials to ensure the internal structural stability of the parts after heat treatment, making the products more durable.
We have professional automation equipments. The daily output is approximately 50000 pcs, which can efficiently deliver customer orders

FAQ
1.Q :What are you factory or trading company?
A:We are intergrated industry and trade.
In order to conduct international business and serve global customers more professionally and efficiently, we established an import and export company in Jinan in 2022: Shandong Beiyang International Trade Co., Ltd. This company is a subsidiary of Liaocheng Gaoyin Bearing Co., Ltd. (SFC Factory). and all its import and export business revolves around the SFC factory.
2,Q:What's your after-sales service and warranty? A: We promise to bear the following responsibilities when defective products were found:
1. Replacements would be sent with goods of your next order;
2. We can provide monetary compensation for defective products that have been not been used yet.
3.Q:Do you accept ODM&OEM orders?
A:Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
4.Q:What's the MOQ?
A:According to customer specific inquiry,MOQ can adjust.It's flexible.
5.Q:How long is the lead time?
A:Produce one container products need about 10-15 days.
6.Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
7.Q:How to place order?
A: 1. Email us the model number, brand ,quality precision and quantity,shipping way of bearings and we will quote best price for you;
2. Proforma Invoice made and sent to you as the price agreed by both parts;
3. Deposit Payment after confirming the PI and we arrange production;
4. Balance paid before shipment or after copy of Bill of Loading.

Application field
Pillow block ball bearings are suitable for simple support and are commonly used in mining, metallurgy, agricultural machinery, chemical, textile, printing and dyeing, conveying machinery, etc

---

>> 89-96158t Marine Starter Tilt/Trim Relay Solenoid for Mercury Mercruiser
>> Ultimate Welding Gloves with Reinforced Protection, Grade a Full-Grain Cowhide Leather
>> HS 1K Crystal Red Pearl P021 Chinese Acrylic Auto Paint Supplier High Chroma Strong Flicker Car Paint Refinish
>> Quarry Crawler Type Portable Stone Jaw Crusher Granite Rock Gravel Crushing Plant
>> 2021 Hot Sale Large output Ice Cream Corn Extruder Machine/Hollow Tube Corn Stick Extruder On Sale
>> New Q18 Blue tooth Sports Silicone Bracelet Metal Casing Smart Watch Step Counting Weather Outdoor Watch
>> Manufacturers Standards ISO 2531 Dci Pipe Class K7 K9 DN80 DN100 Ductile Cast Iron Pipe
>> Healthy and Nutritious Pet Block Bottom Food Packaging Bag
>> Car Air Freshener / Perfume / Fragrance Making Automatic Mixing Freezing Filter Production Line
>> 2024 The Strongest Whitening Needle, Japan Platinum Whitening Injection, Glutathione Injection Factory Price
>> Factory Directly Sale DENSO 6SEU14C Auto Ac Compressor For Audi A3/A4/A5 Porsche Macan 4H0260805E AIK396 248300-2690 L4 V6 2.0 3.0L
>> Customize Wheat Fibre Coffee Mug 450ML/16OZ
>> Heavy Duty Pipe Threading Lathe CNC Qk1327 Qk1350 Qk1363 Automatic Pipe Thread Machine
>> F-150L Computer Controlled Thermostatic Oil Bath Single-Wall Chemical Glass Reactor
>> 20cm Tiffany Table Lamp Alloy Base Rose Lampshade Bedroom Bedside Lamp (WH-TTB-27)
>> 10thp Mineral Small Scale Mining Milling Machine Gold Ore Limestone Stone Dry Fine Grinding Widely Used Gold Ball Mill For Sale
>> High Back Velvet Dining Chair Hotel Upholstered Lounge Dining Chair Living Room
>> Taijia GW-50+ Concrete Cover Meter Rebar Detector Rebar Scanner Rebar Locator Reinforcement Position Tester
>> Completed Uht Processing Line/ Dairy Production Plant
>> Chaff Cutters Crusher for Animal Auto Feed Straw Silage Machine 220V 3kw
