★ Three-point Linkage,multi-functional match different farming implements to finish rotary tilling,ridging,furrowing works etc,
★ Easy operation,low ground pressure, high efficiency.

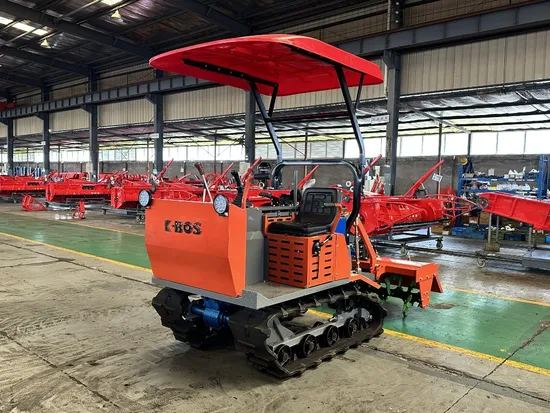

| Product Model | 1GZL-130 CRAWLER TRACTOR |
| Overall Dimension Length×Width×Heights(mm) | 2900×1320×1450 |
| Weight (kg) | 1050 |
| Productivity of Operating Hours(hm²/h) | 0.25~0.35 |
| Engine | Model | AM35NM |
| Rated Power(kw/hp) | 24KW/35HP |
| Engine Type | Water-Cooled,Single-Cylinder,Diesel Engine. |
| Rated Rotation Speed (r/min) | 2200 |
| Traveling System | Type of Gearbox | Mechanical Manual |
| Rubber Track(mm) | 350x90x38 |
| Gauge | 800 |
| Minimum Ground Clearance (mm) | 295 |
Hydraulic Hitch
System | Hydraulic Hitch Type | Semi-partition Hydraulic Hitch |
| Rear Mounted Implements Type | Three-point Linkage |
| Implements catogry | Categories 2 |
| PTO Rotating Speed (r/min) | 580 |
| Working Implement Rotary Tiller | Working Width(mm) | 1250 |
| Type of Knife | IT195 |
| Quantity of Knife | 28 |
| Driving Type | Side Gear Driving |
