ASTM D3786 Fabric Bursting Strength Tester

Product Description

Product Description

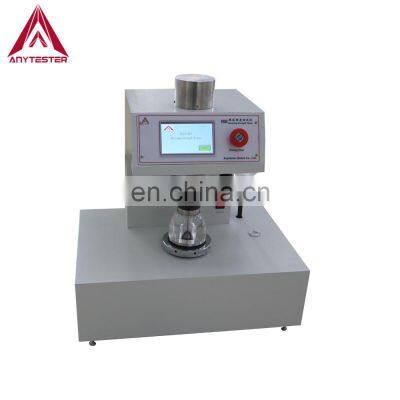

Product DescriptionHY032D Bursting Strength Tester is used to determine the bursting strength and bursting distension of textile fabrics by the hydraulic method. A test specimen is clamped over an expansive diaphragm by means of a circular clamping ring. Increasing hydraulic pressure is applied to the underside of the diaphragm, causing distension of the diaphragm and the fabric. The volume of fluid is increased at a constant rate per unit time until the test specimen bursts. The bursting strength and bursting distension are determined.SpecificationModelHY032DBursting strength range(10~6000)kPaBursting strength resolution0.1kPaDisplay error0.5% F.S.Bursting distension rangeMax.40mmBursting distension resolution0.1mmDistension accuracy±0.1mmInner diameter of clamp(30.5±0.05)mmHydraulic fluidGlycerinPower supplyAC220V 50Hz, 180WDimensions560mm×390mm×680mm (L×W×H)WeightApprox. 105kgDetails & Features1. Large touch screen, clear and easy to set test parameters;2. High-precision digital distension sensor; 3. Lower clamps with concentric tooth to prevent fabric from slippage; 4. Transparent upper clamp for observing the bursting process; 5. Manual clamping device with clamping force more than 700kPa;6. Mini-printer to print out test results; Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us

---
