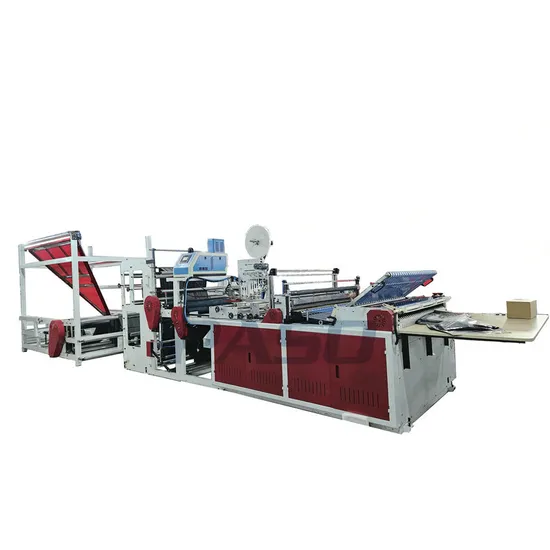

High Speed 1200mm Courier Bag Making Machine

Product Description

Product Description This machine Is specially designed for express courier bag production, making speed reached more than 200pcs per minute, high quality for producing express bag like DHL, TNT etc. which is also available for making garment bag, sock bag, towel bag, bread bag, underwear bag, stationery bag and so on. All processes are completed at one time.
Processed The Material:
PE, Co-Ex-film, BOPP, PP, PVC, etc.
1. Human machine interface, touch screen operation, PLC control, simple operation.
2. The speed of the host machine, the pulling speed and the discharging speed are automatically and synchronously controlled by the controller,.
3. The machine adopts servo motor to fix the length, imported photo eye induction tracking, accurate printing pattern, and automatic stop warning when the photo eye fails.
4. Host motor frequency converter control, simple operation, reduce power consumption.
5. Automatic counting. The number of stacked sheets can be set arbitrarily. When the set number is reached, the whole book will give an alarm.
6. Feeding with imported electric eye tracking, synchronous motor deviation correction, automatic magnetic powder tension control, manual feeding, mechanical shaft feeding;
7. It is equipped with 8KG hot melt adhesive device, with even glue amount, and can be equipped with double servo automatic glue breaking
Product Parameters

Model	RF-1200
Bag length/depth (including flap)	40-1000mm
Bag width	60-1000mm
Speed of Bag-making	30-240pc/minute
Accuracy of finished product	±0.3
Total power	6.5kw
Weight	1,600kg
Power	220V 50Hz
Dimension (mm)	5000/L
	1500/W
	1850/folder

Detailed Photos large size courier bag making with fully autoamtic control sysem
phneumatic drive up & down rolls of material, epe control feeding
multi servos drive and inverter frequency control for fast and stable production output
PLC control sysetm, easy operation inter-face in central control
available making all kinds of express courier bag for Express packing business Packaging & Shipping 1.Packaging: wooden pallet or film wrapped (Fumigation wooden case usually)
2.Delivery time: 5-35/55 days after receiving deposit, depends on order and machine condition.
3.Exporting seaport: Ningbo port ; Shanghai port
4.Payment: we appreciate T/T 30% deposit, 70% balance paid before dispatching; Western Union;L/C acceptable if your goverment policy required
5.Trade terms: ExW,FOB,CFR,CIF,Door to Door, DDU, DDP,
Our Advantages
After Sales Service 1.Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 30minutes by air from Shanghai, around 5hours by train from Shanghai
2.What machines range we make & supply?
Our factory focus on manufacturing extrusion lines, complete bag production line, etc; OEM, ODM, with support of strong R&D team, we also help customer get best solutions for special equipments and plastic machinery;
3.How can we get satisfied machine in hand?
We will make test once machine in ready, to check every parts working condition and electrocircuit; will record relative photo and video for installation in your place.
3. What should we charge if we need engineer service in our country?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary (negotiable)
4. How long is your machine's warranty period?
All our machine have two years guarantee, starting from finished installation. we still keep service for whole life.
5. How could we do if the parts broken within warranty?
We would send the free replacement spare parts during the warranty date.

---
