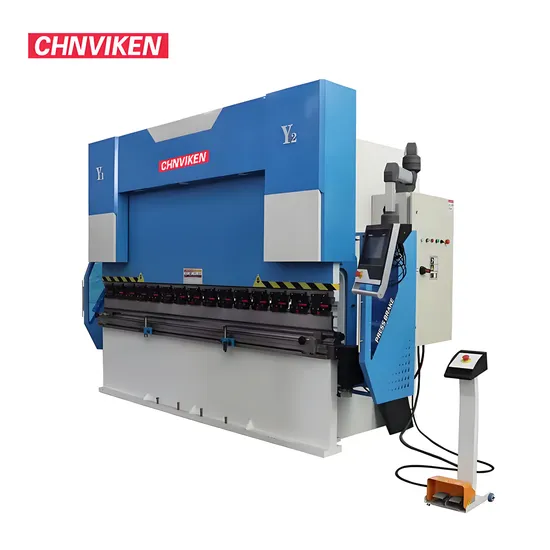

We67K 100t-3200 High Productivity Machine CNC Press Brake Hydraulic Bending

US$20,000.00

1-3 sets

US$19,000.00

4+ sets

Basic Info.

Model NO.

press brake

Warranty

2-year

Condition

New

Automation

Automatic

Type

Press Brake

Weight (Kg)

7500

Machine Type

Torsion Bar

Depth of Throat: 320mm

Distance Between Housings: 2600mm

Showroom Location

Egypt, Canada, UAE, Australia, None

Warranty of Core Components

2 Years

Video Outgoing-Inspection

Provided

Raw Material

Sheet Metal & Steel Plate

Max Bending Width:3200mm

Motor Power (Kw):7.5

Marketing Type

New Product 2024

Key Selling Points

Automatic

Year

2024

Max Opening Height:380mm

Slider Stroke:120mm

Model:We67K-100t/3200

Bending Pressure:1000kN

Power

Hydraulic

Transport Package

Plywood Box

Trademark

CHNVIKEN

Origin

Anhui, China

Product Description

Viken company is a professional enterprise of sheet metal processing equipment such as CNC press brake, fiber laser cutting machine, panel bender, laser welding machine, hydraulic shearing machine, punching machine and machine dies & blade.
Our factory has advanced production equipment and a professional production team, which can customize various types and sizes of equipment according to the different needs of customers. They focus on quality control and product performance optimization to ensure that each piece of equipment can meet customer requirements. In order to maximize customer satisfaction, we provide free 7*24 online after-sales service, and conditional on-site service.

Bending Capability	80/3200	100/3200	100/4000	125/3200	125/4000	160/3200	160/4000
Nominal Force(KN)	800	1000	1000	1250	1250	1600	1600
Worktable Length(mm)	3200	3200	4000	3200	4000	3200	4000
Column Distance(mm)	2650	2610	3100	2610	3100	2600	3050
Throat Depth(mm)	250	320	320	320	320	320	320
Ram Stroke(mm)	120	120	120	120	120	180	180
Main Motor Power(KW)	5.5	7.5	7.5	7.5	7.5	11	11
