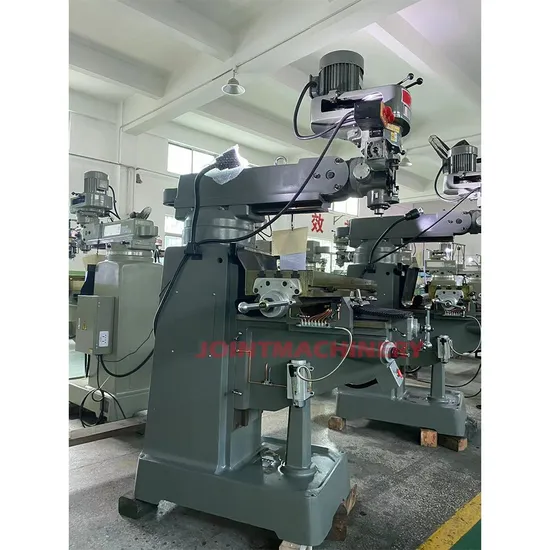

3 Axis Vertical Turret Milling Machine with Strong Cutting and Precision Features

Product Description

Strong cutting and high efficiency production capacity
√ Spindle tolerance: 0.005mm.
√ Suitable for plastics, metal mold processing and other strong cutting parts.
√ Exclusive spindle assembly technology with high precision and cutting efficiency.
1. WORKTABLE
Our worktable is a masterpiece of construction, featuring ultra-audio quenching, precision grinding, and skillful scraping guides. Enhance its versatility with an optional rotary table, tailored to broaden your machining horizons.
2. TURRET MILLING HEAD
The ingenious design of our turret milling head allows it to swivel 45° forward-backward and rotate 90° left-right, offering unrivaled flexibility and ease for milling at distinctive and precise angles.
3. SPINDLE
Our precision-engineered spindles, available in R8/NT30/NT40, feature a spindle runout of just 0.003mm, promising unmatched accuracy and performance.
4. X/Y/Z AUTO FEED
The X/Y axis auto feed, coupled with the Z axis electric lifting, revolutionizes machining efficiency, ensuring your operations are smooth, fast, and incredibly effective.
5. DRO
Elevate your precision with our optional 2-axis or 3-axis DRO, enabling you to tailor operations to your specific requirements for enhanced accuracy and control.
3 Axis Vertical Turret Milling Machine with Strong Cutting and Precision Features

Model				5S
Table size			mm	1270*305*85
Travel		X axis	mm	880
		Y axis	mm	420
		Z axis	mm	390
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	550
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	60-4530
		60HZ	rpm	80-5440
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt Angle			Forward and backward	0°/±45°
			Left and Right	±90°
Dimension			mm	1600*1850*2400
Weight			kg	1900

Shenzhen Joint Machinery Co., Ltd. distinguishes itself as a leading manufacturer and exporter of advanced CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, including a comprehensive selection of milling and grinding machinery. Our steadfast dedication to excellence ensures that every machine we produce meets the highest industry standards, delivering unparalleled quality and reliability. By integrating the latest technological innovations from Taiwan and Germany, our production techniques consistently yield exceptional machines characterized by precision, stability, and reliability. Our esteemed products have secured a strong international presence, reaching markets in Asia, Europe, South America, North America, and beyond. We are committed to nurturing long-term partnerships with clients across the globe, working collaboratively to generate significant business value and success.

---
