Truck Crane /Mobile Crane 25ton Crane-50ton Crane-70ton Crane Qy25K5-I/Qy25K5a/Qy50ka/Qy70kh

Product Description

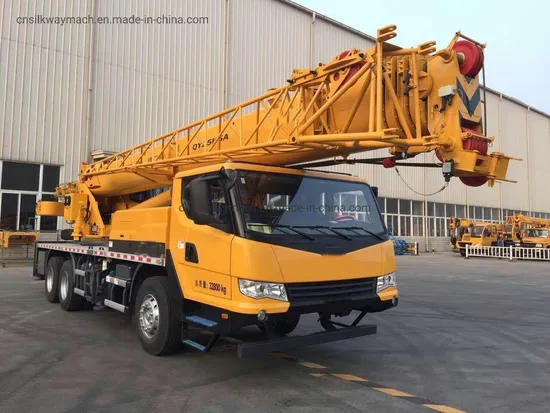

QY25K5 25 ton Truck Crane. QY25K5 truck crane is the product with high reliability inheriting classical and advanced technology about design and manufacture truck crane of many years and based on mature technology.It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oil field, industrial and mining enterprises, etc.
Performance Characteristics:
1. U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation, strong anti-bending and powerful lifting capacity. The main boom length is 10.6m to 41.0m, the performance of MID-extended boom and fully extended are also superior.
2. Plug-in boom head effectively increases the boom connect length and reduces boom deformation. Embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
3. With 9-speed transmission equipped, it has superior travel and grade ability. The max. grade ability is 40%, max. travel speed is 90km/h.

Classificatory	Item		Unit	Parameter
Outline dimension	Overall length		mm	12000
	Overall width		mm	2500
	Overall height		mm	3380
Mass	Total mass in travel state		kg	31000
	Axle load	Front Axle	kg	6440
		Rear Axle	kg	24600
Travel performance	Travel speed	Max. travel speed	km/h	75
	Turning diameter	Min. turning diameter	m	22
	Min. ground clearance		mm	260
	Approach angle		(°)	16
	Departure angle		(°)	13
	Braking distance (at speed of 30km/h)		m	10
	Max. grade-ability		%	30
	Fuel consumption for 100km		L	37
Power	Engine rated output		kW/(r/min.)	206/2200
	Engine rated torque		N.m/(r/min.)	1112/1400
	Engine rated speed		rpm.	2200

---
