US$8,000.00-12,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Vertical Shaft
Transport Package
Plywood Case
Product Description

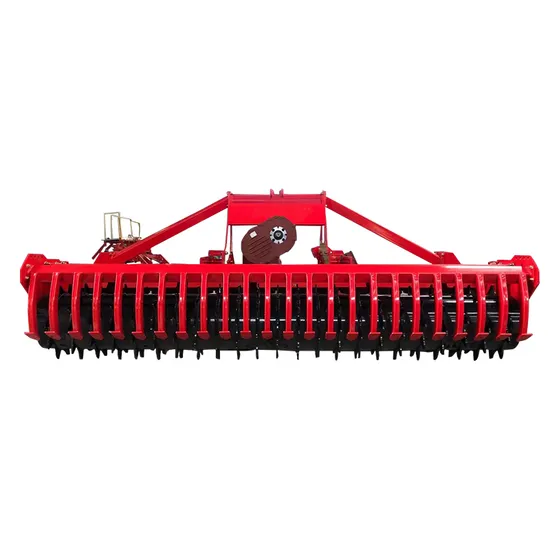

1BQ series power driven harrow output power through tractor pto shaft , forcefully drive working parts to work . Complete loose soil , broken soil , level and suppress land simultaneously . Which is a new type , new structure land preparing machine . Its feature are compact structure , high work efficiency , and strong adaptability etc. After work , plough layer isn't disorderly , topsoil is finely-divided , flat and keep moisture , form good condition to realize precise planting .
1BQ series Heavy duty power driven harrow can choose working width of 2-4.5M, and can be used with 80-300HP tractors. It has the advantages of good soil crushing effect, smooth ground after soil preparation, good moisture retention effect, no damage to soil structure and layering, and neat seedbed emergence rate. It is the first choice for farm managers.
1BQ series Heavy duty power driven harrow a very good finishing effect especially for the unbreakable large clods and moisture ditch that appear after deep ploughing. In terms of seedbed and seedbed finishing, the power-driven harrow is the best working machine at present. After finishing, it can meet the agronomic requirements of "flat, tidy, loose, broken, clean, and moisture content" of the land, providing perfect soil conditions for seed germination.
| Model | 1BQ-2.0 | 1BQ-2.5 | 1BQ-3.0 | 1BQ-3.5 | 1BQ-4.0 | 1BQ-4.5 |
| Width of operation (mm) | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
| Total number of blades | 8 | 10 | 12 | 14 | 16 | 18 |
| Number of positive knives | 8 | 10 | 12 | 14 | 16 | 18 |
| Number of anti knives | 8 | 10 | 12 | 14 | 16 | 18 |
| Overall dimension (L x W x H) (mm) | 1450*2120*1240 | 1450*2620*1240 | 1450*3120*1240 | 1450*3620*1240 | 1450*4120*1240 | 1450*4620*1240 |
| Operation depth adjustment range | 30-180 |
| Linkage | Three-point suspension II type& III type |
| Weight(withou PTO) | 1210 | 1400 | 1620 | 1880 | 2080 | 2250 |
| Ground clearance(mm) | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
>>
