Cheap Price 1200/1400/1600 Corrugated Board Line Single Facer Machine

Product Description

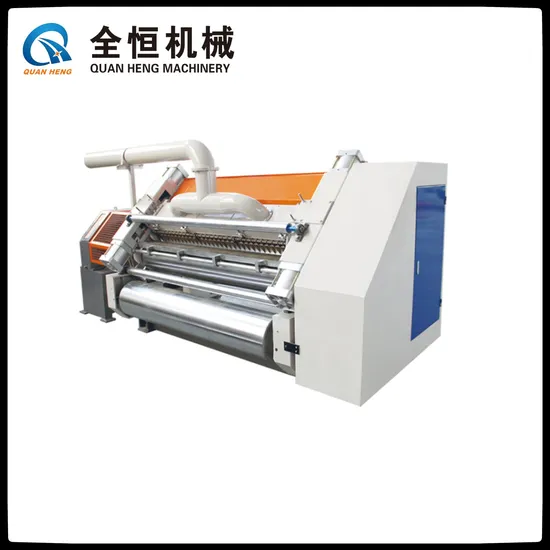

corrugated single facer machine
Structural Features *The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.
*The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.
*The width of suction slot of lower corrugated roller is not more than 2.6mm, able to reduce the stripe mark on single side corrugated cardboard.
*The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.
*This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.
*The glue roller surface is treated with special mesh nicking and chrome-plating.
*Upper and lower corrugated rollers are made of 48CrMo high quality alloy steel. After heat-treatment, the rigidity is HRC58-62.The surface is grinded and chrome plated.
*Flute profile: optional by customers.
Parameters of Main Parts *Upper corrugated roller: Φ280mm Lower corrugated roller: Φ280mm
Produced in Beijing
Pressure Roller: Φ280mm 48# seamless steel pipe, quenched
Produced in Hebei
*Glue Roller: Φ215mm 48# seamless steel pipe, surface treated with special mesh nicking and chrome-plating
*Glue Scraping Roller: Φ136mm 20# seamless steel pipe
place of origin: Chengdu, Sichuan Province
*Pre-heating Roller: Φ296mm 20G Jigang steel wall thickness: 16mm

Expiry width	1400/1600/1800
Temperature	160-200ºC
Total power	55kw
Heating method	electric heating
driving way	chain driving

Detailed Photos
Company Profile
Packaging & Shipping
FAQ Q:Are you manufacture or trading company?A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company ,so we are the source factory, welcome to be our agency.Q:Do you inspect the finished products?A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .Q:Does the packing strong?A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.Q:How about after-sales service process?A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy. Q.Where is your factory?A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!Q. Do you have Import & export right?A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.

---
