Plastic LDPE Lubricant Flexible Jerry Can Tubes Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

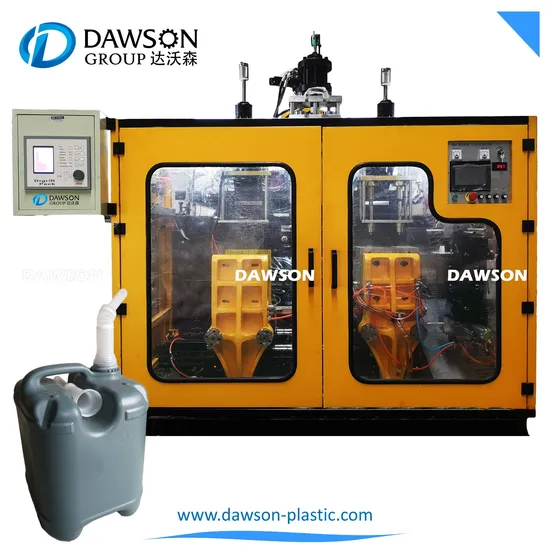

Automatic Extrusion Blow Molding Machine YK70II-2

Blow Molding Machine suitable for making 0~2L bottles
Technical Parameters Product: 0~2L small bottles / LDPE jerry can flexiable nozzles
Power supply: 380/220v 50/60 Hz Tri-phase
Layer: Single layer
Parison control: MOOG 100 points

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	2 L / 5L
	Output capacity	as per samples
	Size	4.4×3.4×3.6(M)
	Weight	11.3T
system	Specification	Parameters	Note
Plasticizion system
	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw 1	∮70mm,L/D ratio 25,130kg/h 38CrMoALA	Cooling system available
	Heating Zone	4 Aluminum Heater	Automatic heating
	Heating power	10KW/H
	Cooling Fan	Separate cooling system for heaters	Automatic cooling

Extrusion system
	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	200
	Extruder Motor	30kw SIEMENS MOTOR
Clamping system

	Summarize	High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
	Clamping force	270 KN
	Distance between platens	450~950mm
	Mould template	680× 660
	Mould material	S50C/Aluminium with beryllium copper

Electricystem
	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Parison control	MOOG 100 points controller
	Temperature control	Automatic temperature control module
	Movement control	TECH-2/Mitsubishi, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function
	TOTAL rated power	67kw
	Average power consumption	33 kw
	Inverter	Delta

Hydraulic system
	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	11kw motor (380V/220V,50/60HZ)
	Oil pump	double vane pump
	Valves	Imported oil pump valves and connections YUKEN
	Oil pipes	Double layer overpressure resistant
	System pressure	LP 100 bar / HP 130 bar Threads of hydraulic block use of screw joint GE(ISO 1179)
	Cooling system	Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.6~0.8Mpa
	Air displacement	2.2 M3/min
	Electromagnetic valve	Taiwan AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system
	Cooling medium	Water
	Water flow	100L/min
	Water pressure	0.4-0.6MPa

1.Hydraulic system and valves connections from Japanese Yuken industry.
2.Computer control system (PLC) Japanese Mitisubishi PLC Used to control all electrial components and touch screen
3.Auto-deflashing Unit
Remove extra parts of products automatically
Saving your labor cost
4.Electric Cabinet All electric components
From famous world brand to ensure the quality and stability
5.Touch screen Chinese and English
(or other language)
All movement operated
By touch screen
Make the process full-automatic
Machine's color can be customized according to your needs.

---
