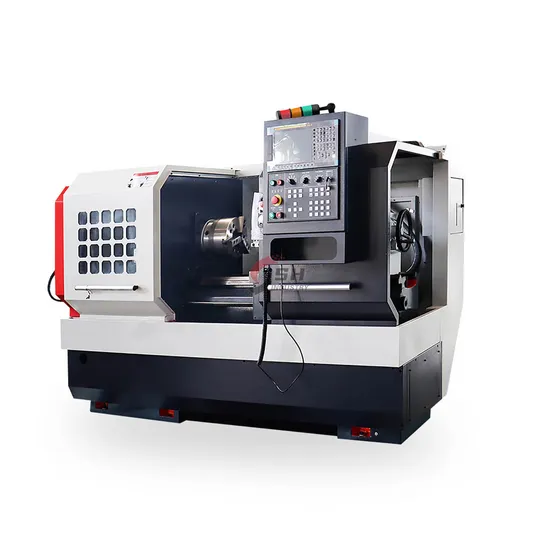

Metal Machine Ck6136 Horizontal CNC Lathe High Precision Machine

Product Description

Product Description
Metal Machine Ck6136 Horizontal CNC Lathe High Precision Machine
Product Parameters
CK series CNC Lathe machine is an economical, practical type machine tools with high quality.
It has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirements.
Features :
Big torque ,high precision spindle
Hydraulic shift ,easy operate
Z axis feed is directly connected which has high transmission accuracy and high positioning accuracy
Vertical 4 position electric toolpost with high positioning accuracy
Standard configuration:
GSK control system
Guideway width 400mm
Manual chuck
Manual tailstock
Optional Configuration :
Siemens or Fanuc system
Hydraulic chuck
Hydraulic tailstock
Electric turret /Hydraulic turret
Automatic chip conveyor
Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .

SPECIFICATIONS	SPECIFICATIONS	Units	CK6136
	Swing over bed	mm	360
	Swing over cross slide	mm	190
	Distance between centers	mm	750/1000/1500/2000
	Spindle bore	mm	52(Optional 80)
	Spindle bore taper	-	MT6
	Spindle nose type	-	C6
	Spindle speed steps	-	Manual 2 steps
	Spindle speed range	rpm	L:100-500 H:500-1800
			(Optional 90-1800 stepless)
	Turret/tool post	-	Electric 4 position
	Tool size	mm	20 x 20
	X axis travel	mm	200
	Z axis travel	mm	750/1000/1500/2000
	X axis rapid traverse	mm/min	6000
	Z axis rapid traverse	mm/min	8000
	Tailstock quill diameter	mm	65
	Tailstock quill taper	-	MT4
	Tailstock quill travel	mm	130
	Main spindle motor	kw	4
	Coolant pump motor	kw	0.09
	Weight for 750	kg	1600
	Weight for 1000	kg	1700
	Weight for 1500	kg	1800
	Weight for 2000	kg	1900
	Dimension for 750	mm	2200x1600x1650
	Dimension for 1000	mm	2500x1600x1650
	Dimension for 1500	mm	3000x1600x1650
	Dimension for 2000	mm	3500x1600x1650

Realistic photos
CK series CNC Lathe Machine is an economical, practical type machine tools with good quality.
C The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc,
thread, boring, reaming of axle and disk workpiece.It also can achieve non- -circular curve machining. You
can choose the CNC system and optional accessories according to your requirement.
Detailed Photos
Our Advantages
Why not consult us once instead of searching ten times
Trading one day earlier, you will earn money one day earlier than others and occupy more market share
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
