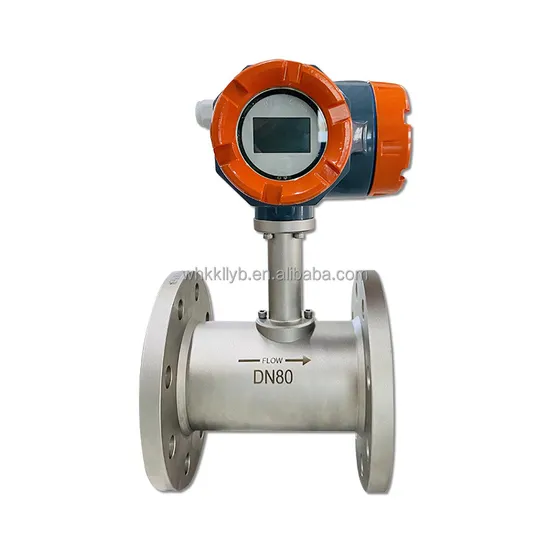

Chinese Suppliers DN50-100 4-20mA Flowmeter Fuel Diesel Liquid Turbine Flow Meter

Product Description

Chinese Suppliers DN50-100 4-20mA flowmeter Fuel Diesel Liquid Turbine Flow Meter
Specifications and basic paramter

Flow diameter mm	Range of flow m3/h	Connection type
DN 4	0.04~0.25	Thread/hoop
DN 6	0.1~0.6	Thread/hoop
DN 10	0.2~1.2	Thread/hoop/flange
DN 15	0.2~2	Thread/hoop/flange
DN 20	0.6~6	Thread/hoop/flange
DN 25	0.7~7	Thread/hoop/flange
DN 32	1.5~15	Thread/hoop/flange
DN 40	2~20	Flange
DN 50	4~40	Flange
DN 65	7~70	Flange
DN 80	10~100	Flange
DN 100	20~200	Flange
DN 125	25~250	Flange
DN 150	30~300	Flange
DN 200	80~800	Flange

Production process
Features 1. Simple structure and convenient reading.
2. Lightweight, high precision and good repeatability.
3. Responsive, easy to install and maintain. Customer visit
Quantitative control systerm is composed of flowmeter ,flow quantity control instrument .solenoid valve and distribution box. 1.Extractable start ,stop ,zero button.
2.Can simultaneously control the opening of the valve and pump
3.Can set 8 constant usage
4.Power outage,continue to quantity according to previous values after reboot.
5.Quickable quantitative number ,quantitative value ,quantitative time
6.Installing a miniature printer to print quantitative data.
7.All Chinese LCD display,easy to operate.
8.Mountable size valve control quantitative ,more accurate.
Selection Table

LWGY						Explain
Classify	LWGY					Basic model,+5-24DCV power supply
	LWGYA					Two-wire system current output, remote transmission
	LWGYB					Battery powered field display
	LWGYC					field display/Two-wire system current output
	LWGYD					RS485 communication output
Inside nominal diameter		4				4mm,general turbine flow range 0.04~0.25m3/h
		6				6mm,general turbine flow range 0.1~0.6m3/h
		10				10mm,general turbine flow range 0.2~1.2m3/h
		12				12mm,general turbine flow range 0.2~2m3/h
		15				15mm,general turbine flow range 0.6~6m3/h
		20				20mm,general turbine flow range 0.7~7m3/h
		25				25mm,general turbine flow range 1~10m3/h
		32				32mm,general turbine flow range 1.5~15m3/h
		40				40mm,general turbine flow range 2~20m3/h
		50				50mm,general turbine flow range 4~40m3/h
		65				65mm,general turbine flow range 7~70m3/h
		80				80mm,general turbine flow range 10~100m3/h
		100				100mm,general turbine flow range 20~200m3/h
		125				125mm,general turbine flow range 25~250m3/h
		150				150mm,general turbine flow range 30~300m3/h
		200				200mm,general turbine flow range 80~800m3/h
Anti-explosion						No mark, non - explosive type
			B			Anti-explosion
Accuracy class				A		Accuracy 0.5 grade
				B		Accuracy 1 grade
Turbine type					A	Wide range turbine Ordinary turbine
					B

Certifications
Packaging & Shipping
FAQ
Q1: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cargo control products over 10 years. Our factory is located in Ningbo.

Q2: Can you provide OEM/ODM service?
We have cooperated with many big companies for OEM, but we also offer ODM service as we have our own R&D team.
Q3: What is your MOQ?
Usually 10 pcs for each item.

---
