US$18,000.00
10-19 Pieces
US$17,000.00
20-49 Pieces
Basic Info.
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Max Single Dump Cap(G)
3~200g
Weighing Accuracy
0.1~1.0g
Maximum Weighing Speed
120wpm
Packing Speed
15~50bags/Min
Film Pulling Driven System
Servo Motor
Horizontal Sealing Driven System
Servo Motor
Voltage
4.75kw/220V /50(60)Hz
Gas Consumption
0.15m3/Min
Machine Dimension
L*W*H=1325mm *1071mm*2025mm
Optional Device
Gusset Device
Optional Devices
Chain Bag
Transport Package
Plywood Crate Wooden Case
Production Capacity
5000 Pieces/Year
Product Description

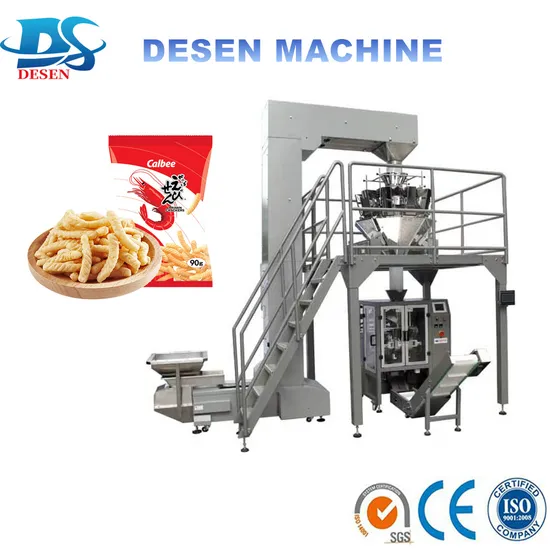

Peanut/Coffee Beans/Rice/Tea/Candy/Potato Chips/Snacks/Food Automatic VFFS Vertical Packing Packaging Machine Features 1)The system will finish all the process automatically: feeding, dosing,filling, sealing, date printing and finish product conveying. It has high accurate weighting and high efficiency without broke.
2) Automatic film rectifying deviation funtion.
3) Equipped with famous brand electronic elements such as Yaskawa, SMC, Schneider, Carlo Gavazzi...etc.
4) Famous brand PLC Pneumatic system for vertical and horizontal sealing & packing.
5) SUS304 stainless steel, good material for longlife.
Technical Parameters
| Type | MD-K420 | MD-K520 | MD-K720 | MD-K820 |
| Bag length | 50-300mm | 80-400mm | 120-500mm | 100-500mm |
| Bag width | 50-200mm | 80-250mm | 120-350mm | 250-400mm |
| Max Film width | 420mm | 520mm | 720mm | 820mm |
| Packing speed | 5-70bags/min | 5-70bags/min | 5-50bags/min | 5-60bags/min |
| Measuring range | 100-1200ml | 3000ml(Max) | 5000ml(Max) | 15L (Max) |
| Air consumption | 0.65mpa | 0.65Mpa | 0.65Mpa | 0.65Mpa |
| Gas consumption | 0.3m³/min | 0.3m³/min | 0.5m³/min | 0.8m³/min |
| Power voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Power | 2.2KW | 4.0Kw | 5Kw | 5Kw |
| Dimension | 1320×950×1360mm | 1150×1795×1650mm | 1780×1350×1700mm | 1600×1350×2110mm |
| Machine weight | 540Kg | 600KG | 700KG | 900KG |
Application
This automatic packaging machine is suitable for packing candy, grain, solid nuts, peanuts,potato chips, coffee beans, snacks, rice, vegetable, salad, meat, sea food, metal accessories...etc.
| Optional device: |
| Gusset device | Nitrogen charging device |
| Chain bag | Vibrating device |
| Punching device | Sealing device |
| Exhaust/Inflatalbe devices | Easy tear device |
| PE film sealing | Bag support device |
| Anti-Static electricity | Evacuating device |
| Horizontal seal cooling blowing device | Film rectify deviation adjust device |
| Automatic feeding device | |
Sample:
Machine Details :
Dimension Drawing :
Film Installation Diagram :
Auxi Equipment :
Bag Former :
Our plant:
Pay & Shipping Method
>>
