Flywheel Disk Grinding Machine (3M9940)

Product Description

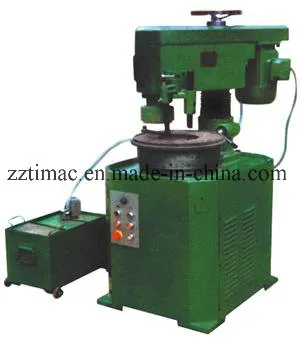

FLYWHEEL DISK GRINDING MACHINE
Product Description
***Features:
This flywheel disk grinding machine is suitable for grinding the arc surface of brake band of automobiles & tractors. It is specially designed for flywheel and clutch plate grinder of automobile.
1. Adopt vertical structure to be convenience for mounting & clamping workpiece.
2. Provide turning mechanism, firstly turning and then milling with high working efficiency.
3. Equipped with special fixtures to carry out repairing parts of other disks.


Specification

Specification	3M9940
Maximum outer diameter of processing workpiece	Φ510mm
Diameter of grinding wheel	Φ150mm
Revolution of grinding wheel	2840r/min
Diameter of rotating worktable	Φ400mm
Revolution of worktable	36r/min
Space from worktable surface to end surface of grinding wheel	0~200mm
Electric total power	5KW
Net weight of grinding machine	700Kg
Overall dimension of grinding machine	710×1020×1500mm

After Sales Service

1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.
Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing
history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.
Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
