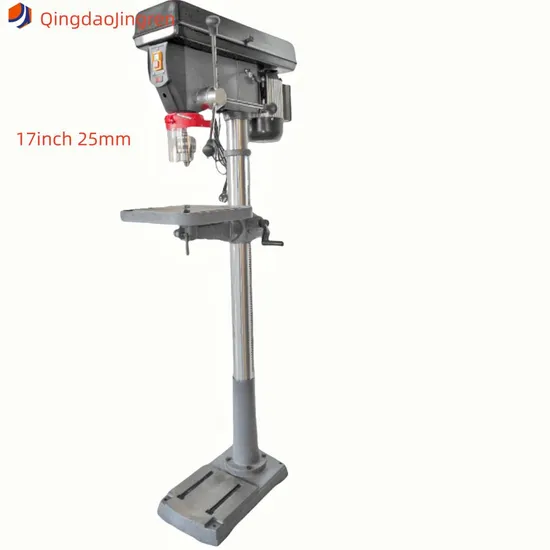

20mm Chuck 17inch 16speed Floor Drill Press with Circular Table

Product Description

Product Description
25 mm 16 speed floor drill, round table and sink table can be selected, laser positioning and built-in lighting options. The rotating diameter of the machine is 430mm, and the spindle travel is 80mm

Detailed Photos
Product Parameters

MODEL	DP201704
MOTOR	750W/1100W
Swing	430mm
Max.Drilling capacity	25mm
Taper	MT2/MT3
Spindle travel	80mm
Spindle Speed	16speed
Speed range 50HZ	160-3000rpm
Speed range 60HZ	200-3630rpm
Table Size	¢290mm/330X330
Base size	480X280mm
Column Diameter	¢80mm
Max.distance from spindle end to surface of table(mm)	680mm
Max.distance from spindle end to surface of base(mm)	1160mm
Table Tilting Range	0-45°
Overall Height	1635mm
NW./GW.	67/72
Carton size	1400X495X245
Q'ty/20 container	96

https://jingrendrillpress.en.made-in-china.com/product-list-1.html Certifications

CE
FAQ

Q: Are you a manufacturer or a trading company?
A:We have been in this industry for more than ten years, with our own manufacturing plant, and our own research and development trade production team.
Q: How is your quality control?
A: We have QA & QC department to make sure qualified products us.
income raw material inspection and first unit sample confirmed by QA before assembling; processing, duration & performance testing carried out by QC before packing by 100%;
Q: What's your payment term?
A:The payment term is30% down payment and 70% balance before shipment.
Q:Can you accept smaller order?
A:Yes, our MOQ is 50pcs without customized color and package.

---
