3t Load 1.5m Lifting Height Cargo Lift Platform

Product Description

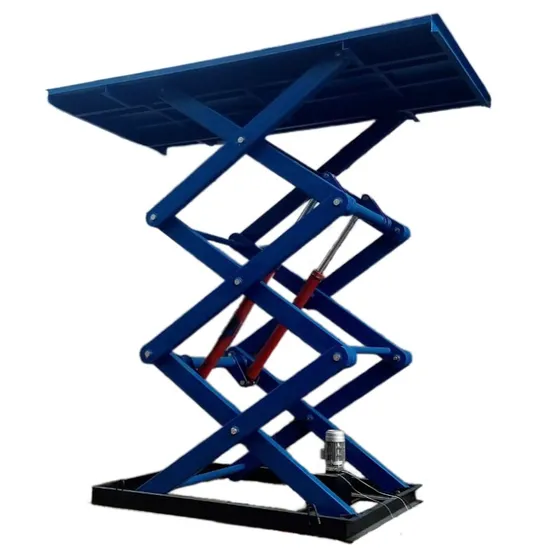

Stationary Scissor Cargo Lift Platform
Stationary scissor lift platforms are widely used machines for many fields, the most popular using are in warehouse,basement,first floor,etc, which for carrying the cargos,cars and so on, to the high floors.
It is design and produce as clients' requirements, as long as telling us the requirements of capacity, platform size, lifting height, we can design, supply drawing and give offer.



Product Parameters
These are the types which we exported to the customers following:

Model	Capacity(kg)	Table size(m)	Lifting height (m)	Closed height(m)	Power
SJG3-4.5	3000	5.7*2.0	4.5	0.85	4KW/380V
SJG0.5-2.7	500	1.5*1.0	2.7	0.5	1.5KW/380V
SJG2-5	2000	1.75*1.2	5	1.03	3KW/380V
SJG1.5-2.4	1500	2.2*1.5	2.4	0.45	3KW/380V
SJG5-3	5000	3 * 2	3	0.8	4KW/380V
SJG1.5-4	1500	2.5*1.5	4	1.0	3KW/380V
SJG4-4.4	4000	2 * 1	4.4	1.1	4KW/380V
SJG2-11	2000	5.5 * 2.2	11	1.2	5.5KW/380V
SJG1.5-4	1500	1.8 * 2	4	0.86	4KW/380V
SJG0.7-0.95	700	0.95*0.8	0.95	0.4	2.2KW/380V
SJG0.2-2.3	200	1.3*1.0	2.3	0.48	2.2KW/380V
SJG3-2.3	3000	1.6*1.4	2.3	0.66	2.2KW/380V
SJG1-5	1000	1.6*1.5	5	0.92	2.2KW/380V
SJG2-6	2000	2.0*2.0	6	1.03	4KW/380V
SJG2-5	2000	2.1*1.2	5	0.87	4KW/380V
SJG3-6.5	3000	2.2*1.9	6.5	1.52	5.5KW/380V
SJG2-5	2000	2.3*1.4	5	0.87	4KW/380V
SJG2-5.15	2000	2.3*1.44	5.15	0.87	4KW/380V
SJG2-4	2000	2.5*1.5	4	0.86	4KW/380V
SJG2-9	2000	2.5*2.0	7.5	1.43	4KW/380V
SJG1.5-7.9	1500	2.6*2.0	7.9	1.2	4KW/380V
SJG2-5.4	2000	2.9*2.0	5.4	0.82	4KW/380V
SJG2-4	2000	3.0*1.6	4	0.83	4KW/380V
SJG2-4.5	2000	3.0*2.5	4.5	0.82	3KW/380V
SJG3-4.5	3000	4.3*2.8	3	1.03	5.5KW/380V
SJG1.5-8.5	1500	2.25 *1.6	8.5	1.2	4KW/380V

---
Sample sketch of scissor lift load 3t lifting height 1.5m:
Main Features
★ Design according to clients' requirements, the max load capacity can be 30 tons.
★ Emergency and overload protection devices.
★ Anti-slip checkered steel plate of the paltform surface.
★ Imported or domestic joint venture hydraulic pump, cylinder and seal ring, and other spare parts are available.
★ Controls on the different floors or levels for customers if they need.
★Supply for detailed installation drawings, operation and maintainance manual, hydraulic diagram, electric diagram. Good warranty and service.

More Images Show
Workshop Show

---
